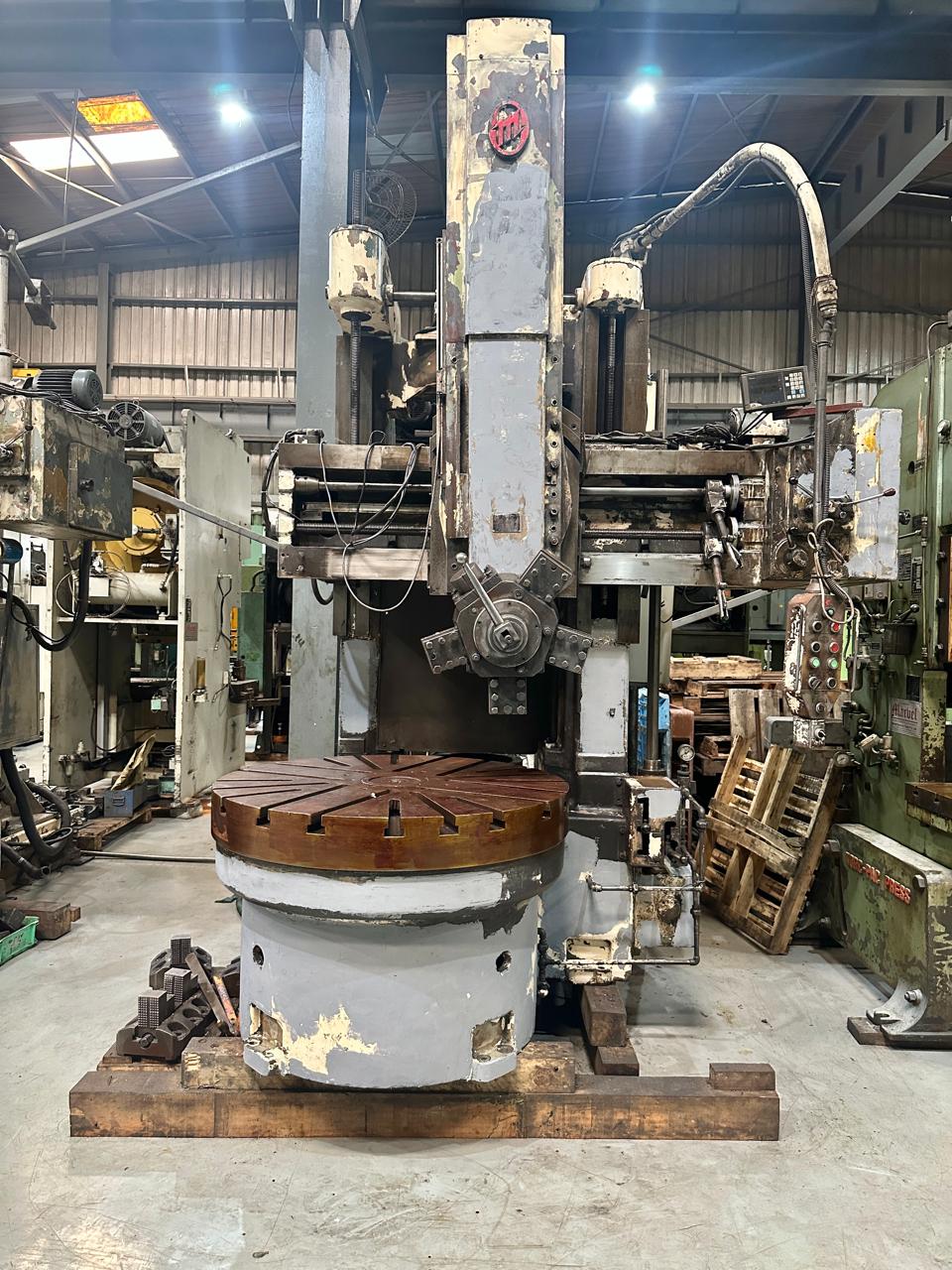

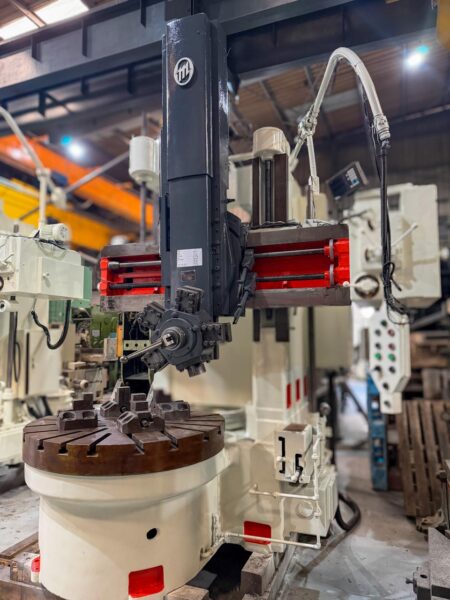

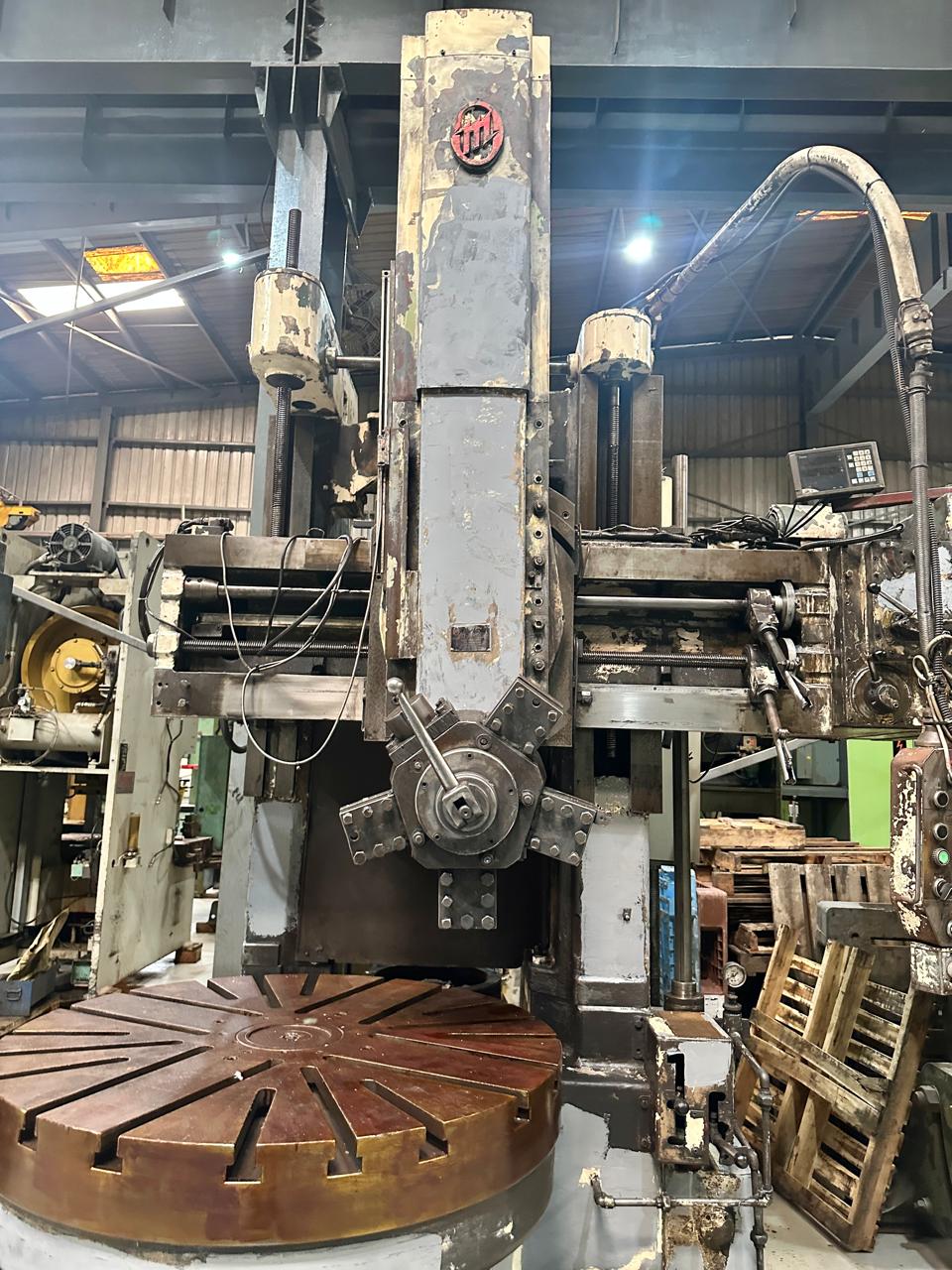

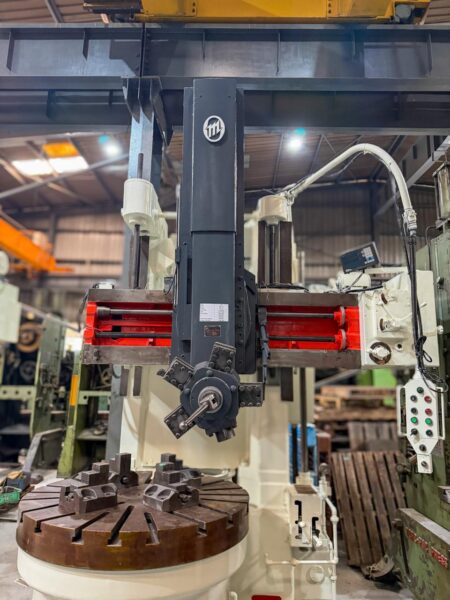

VERTICAL TURRET LATHE

O M JAPAN

MODEL: VTO-12

SKU # 1731

Brief Specifications/ Details

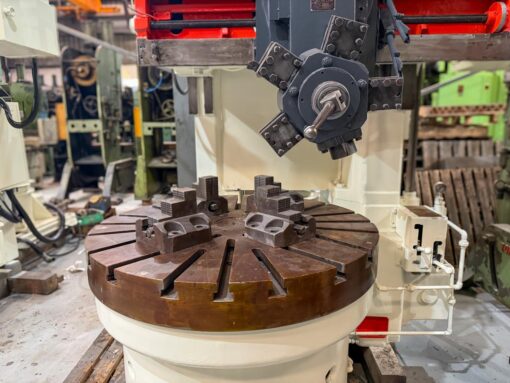

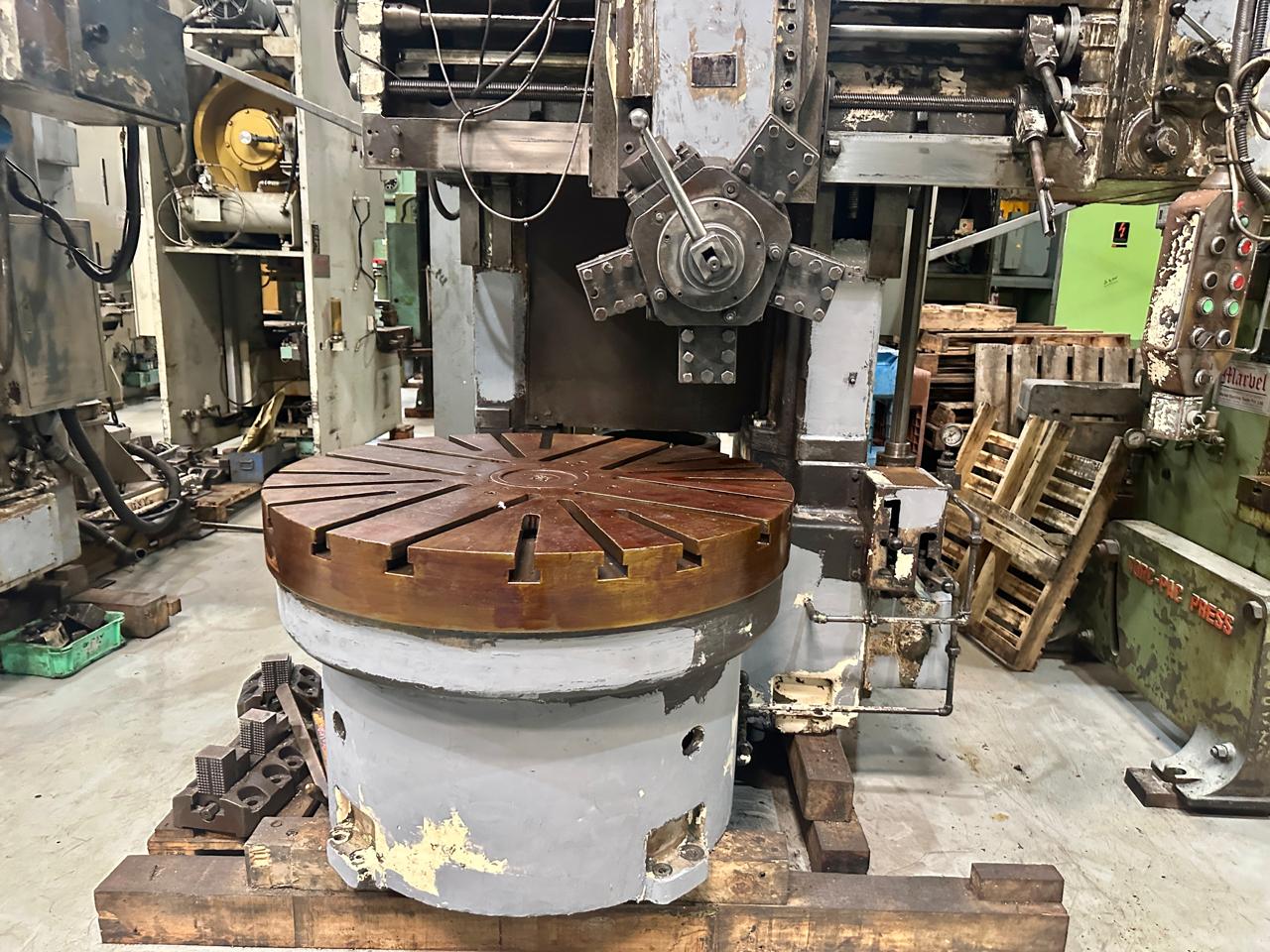

• • Chuck : 1200mm
  • Max Swing :1660mm
  • Travel : X axis-800mm , Z axis-700mm
  • Cross Slide Travel : 600
  • Swing Over Bed : 1100mm
  • RPM : 3.6 to 180

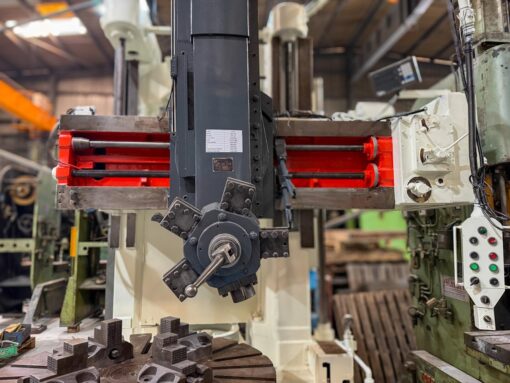

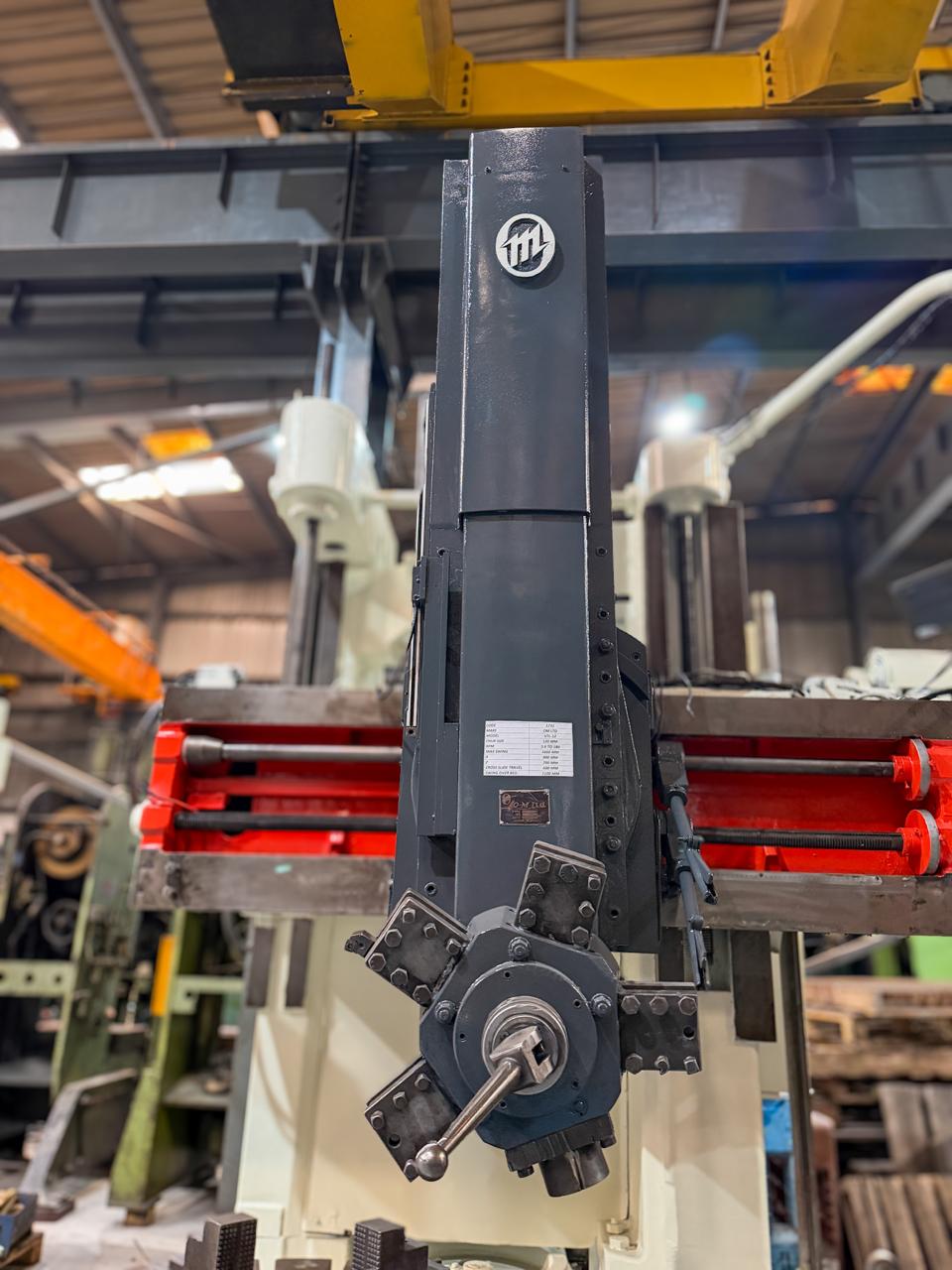

  • Turret : 5 station

 Accessories

 Other Details (Approx)

• • Clutch : Dry

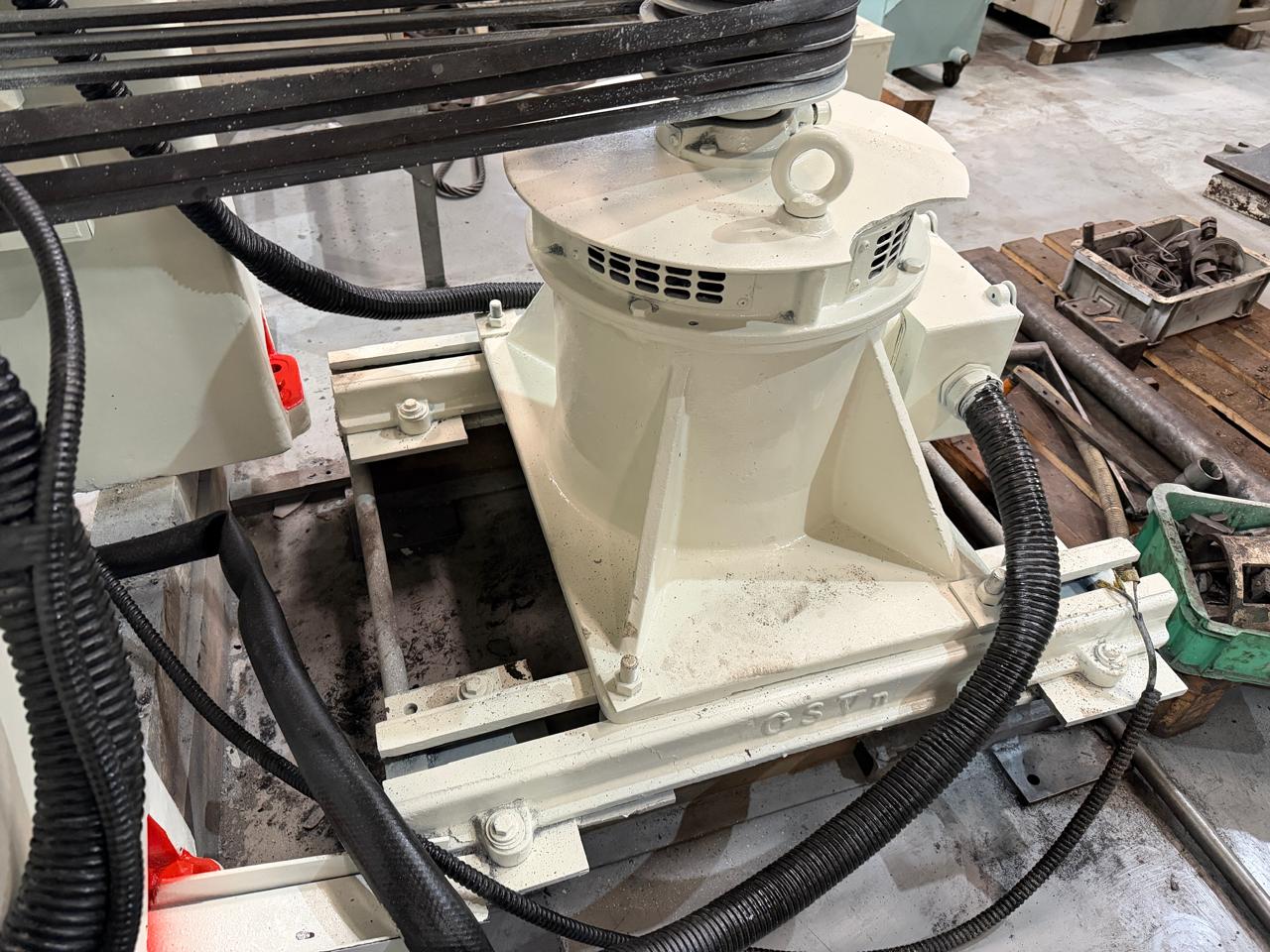

  • Main Motor : 20KW
  • Power Required : 220V/25KVA Phase : 3
  • Air Required : 5.5/sqcm
  • Machine Size : F-B: 11’-0”, L-R: 8’-4”, HT: 11’-5”
  • Machine Weight : Apx-15 Tons
