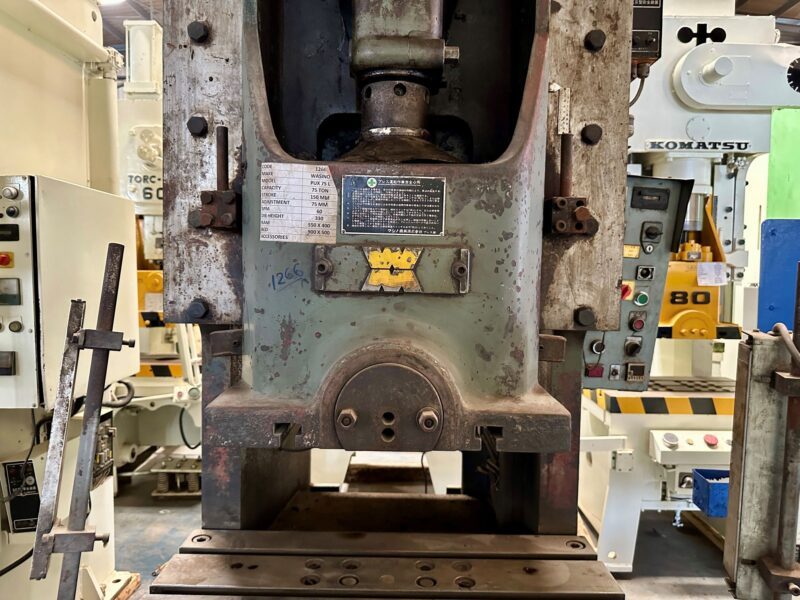

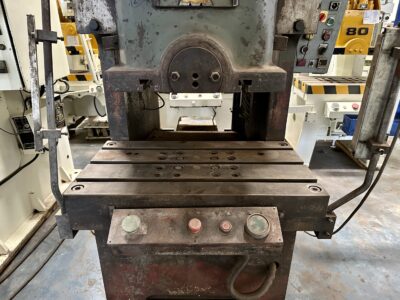

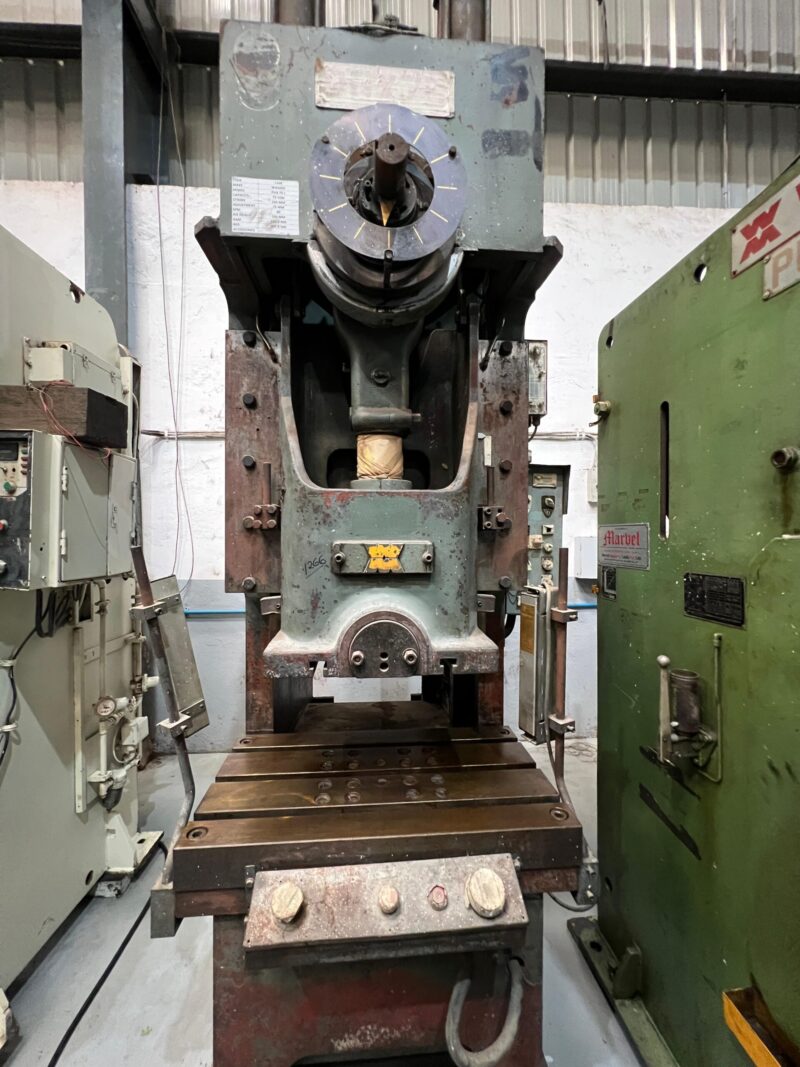

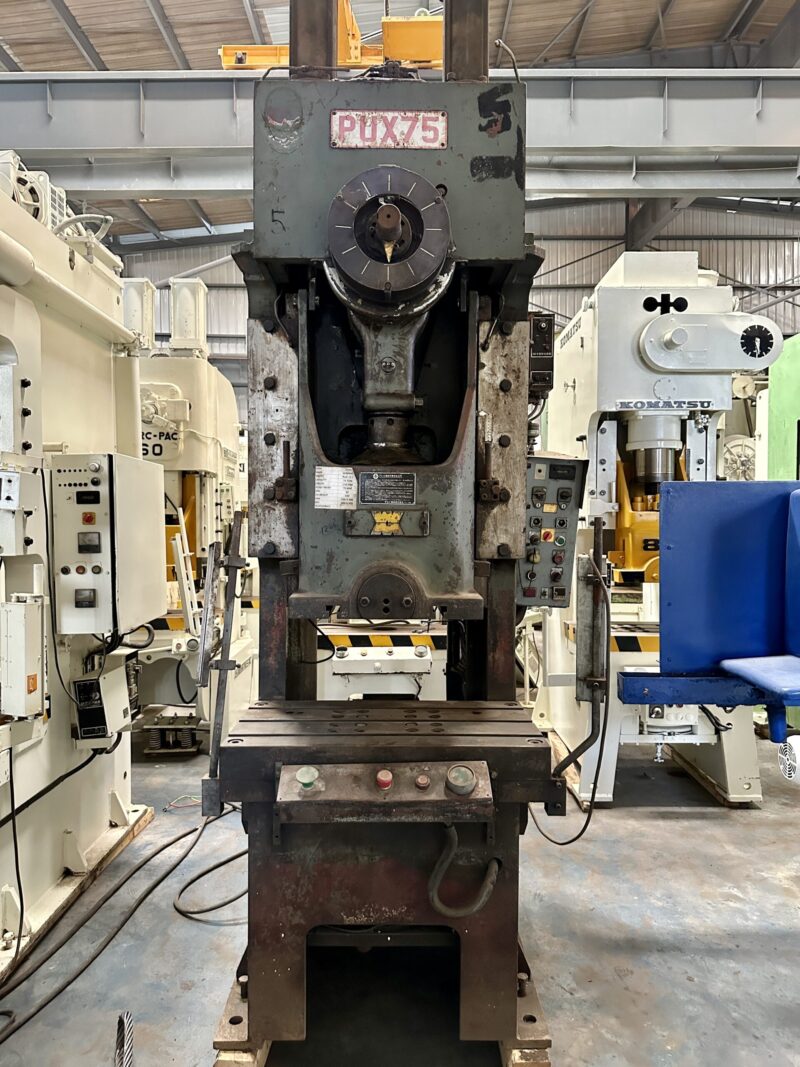

‘C’ FRAME SINGLE CRANK PRESS

WASINO JAPAN
MODEL: PUX 75L
SKU # 1266

Brief Specifications/ Details

• Cap : 75Tons
• Stroke : 150mm
• Die Height : 330mm
• Adjustment : 70mm
• SPM : 60
• Slide :  550 x 400mm

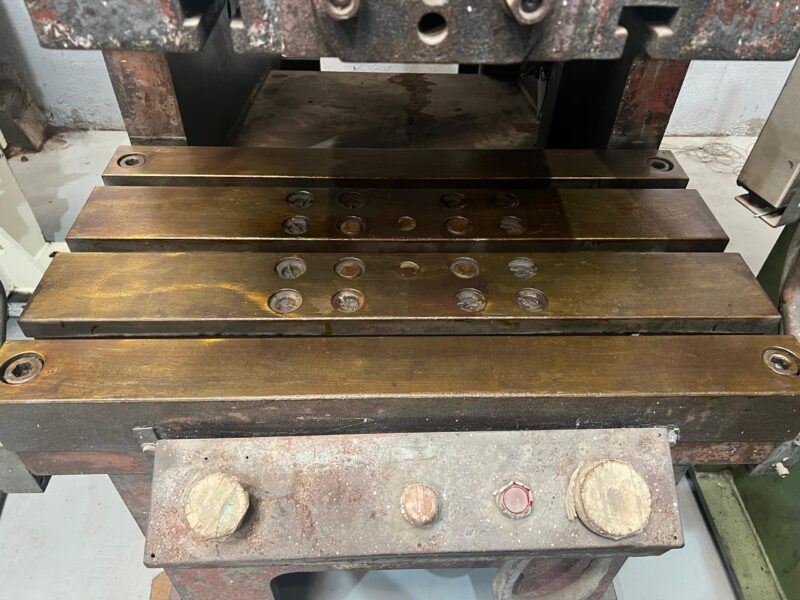

• Bolster : 900 x 500mm

     Accessories

With Die Cushion

 Other Details (Approx)

• Clutch : Dry
• Main Motor : KW
• Power Required : 220V/10KVA Phase : 3
• Air Required : 5.5/sqcm
• Machine Size : F-B: 6’-3”, L-R: 4’-6”, HT: 10’-10”
• Machine Weight : Tons
