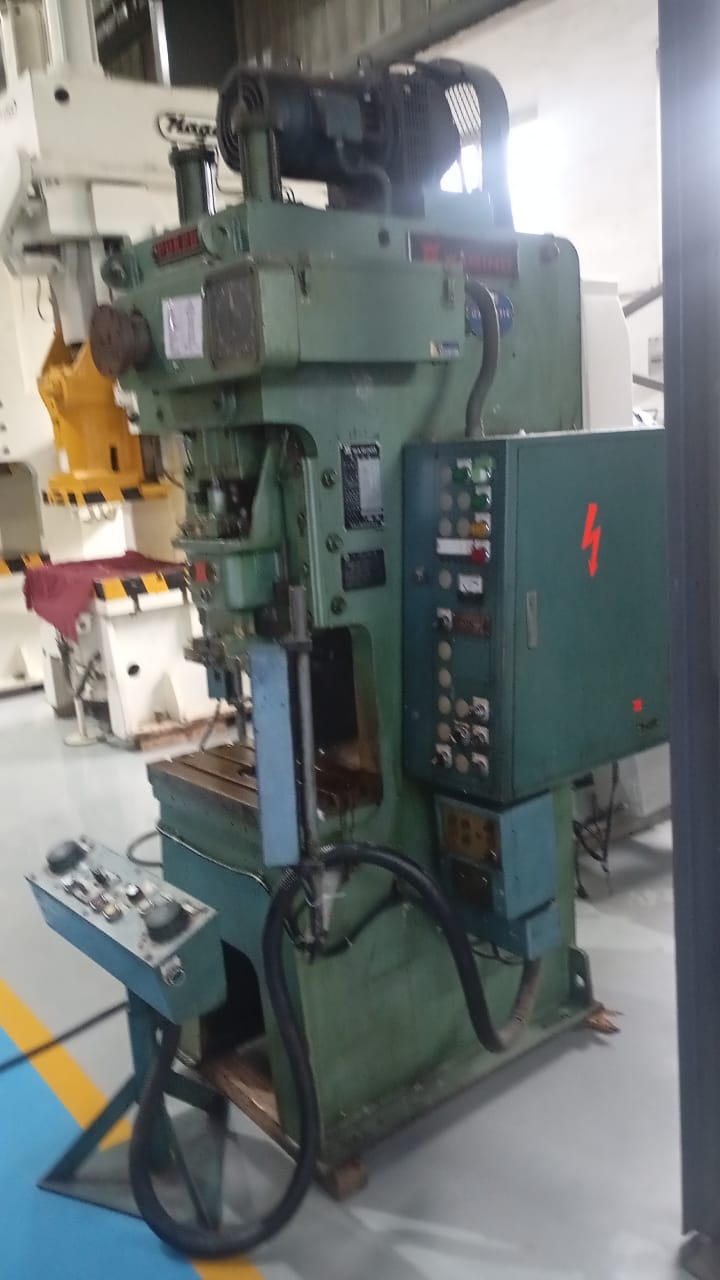

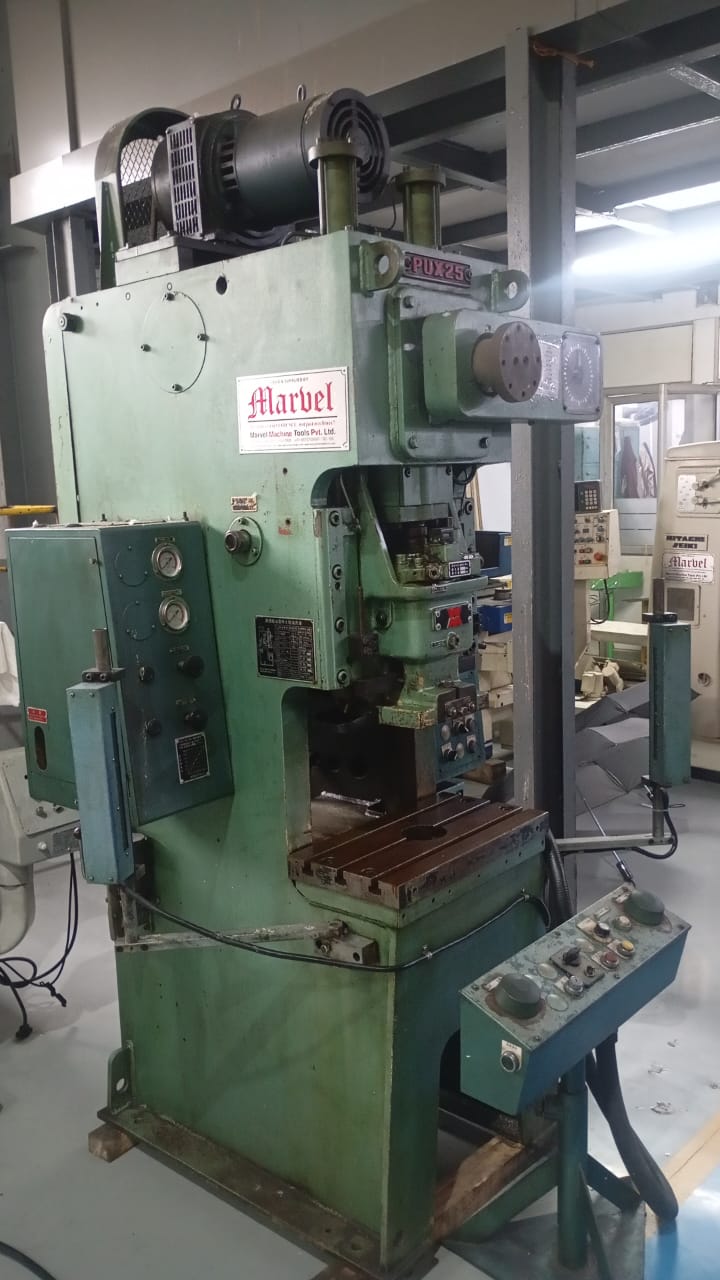

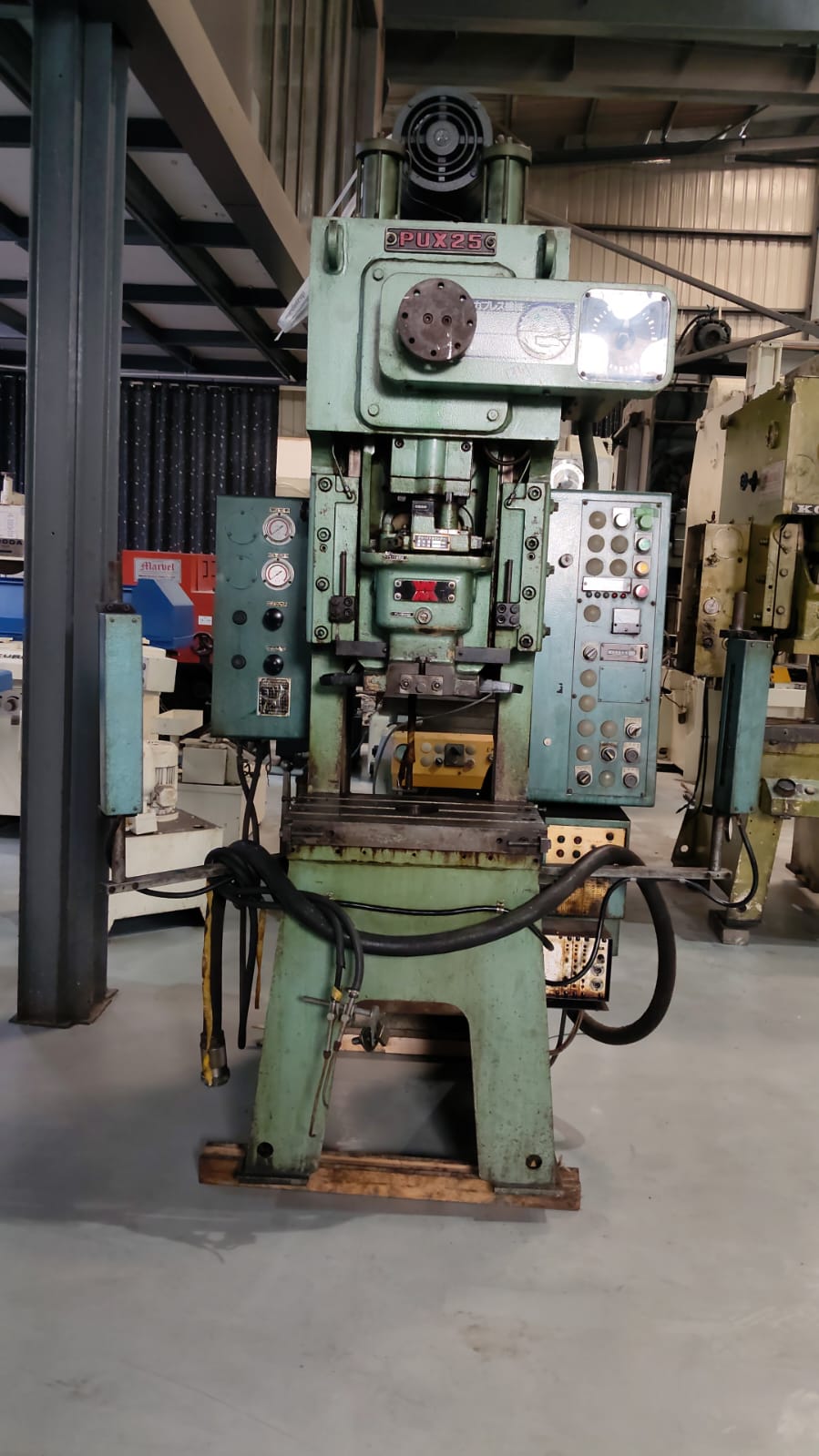

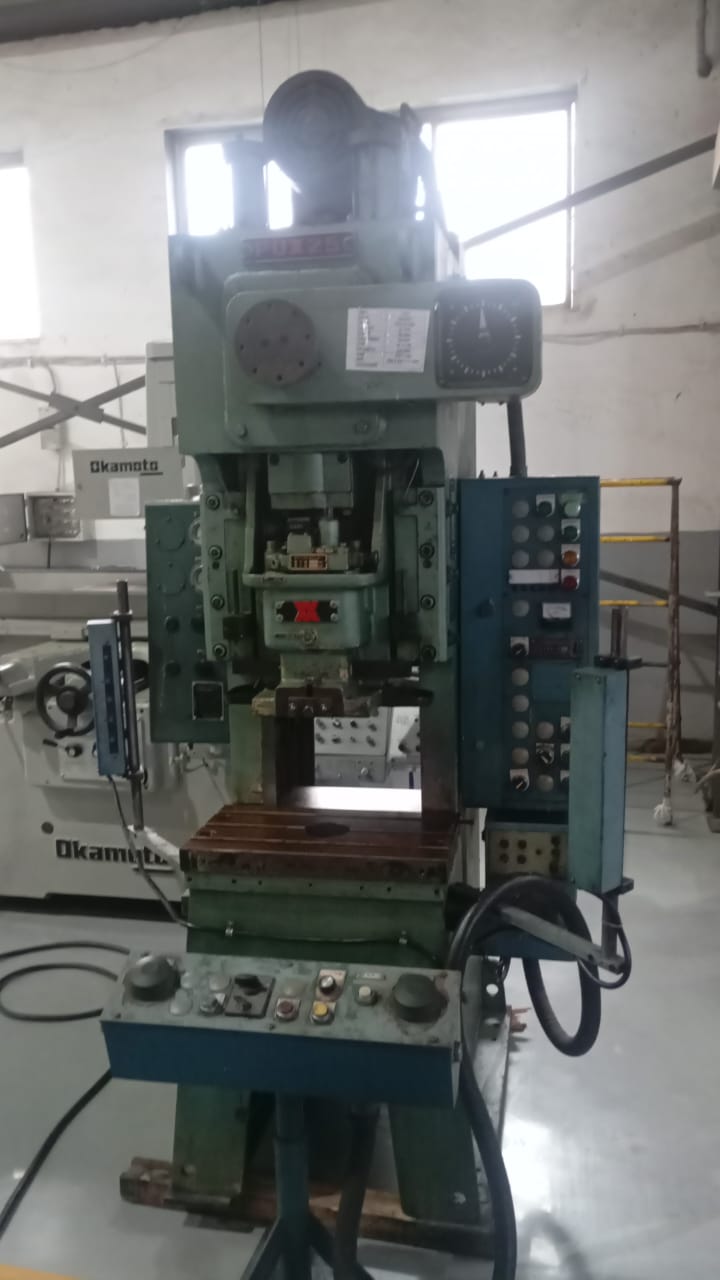

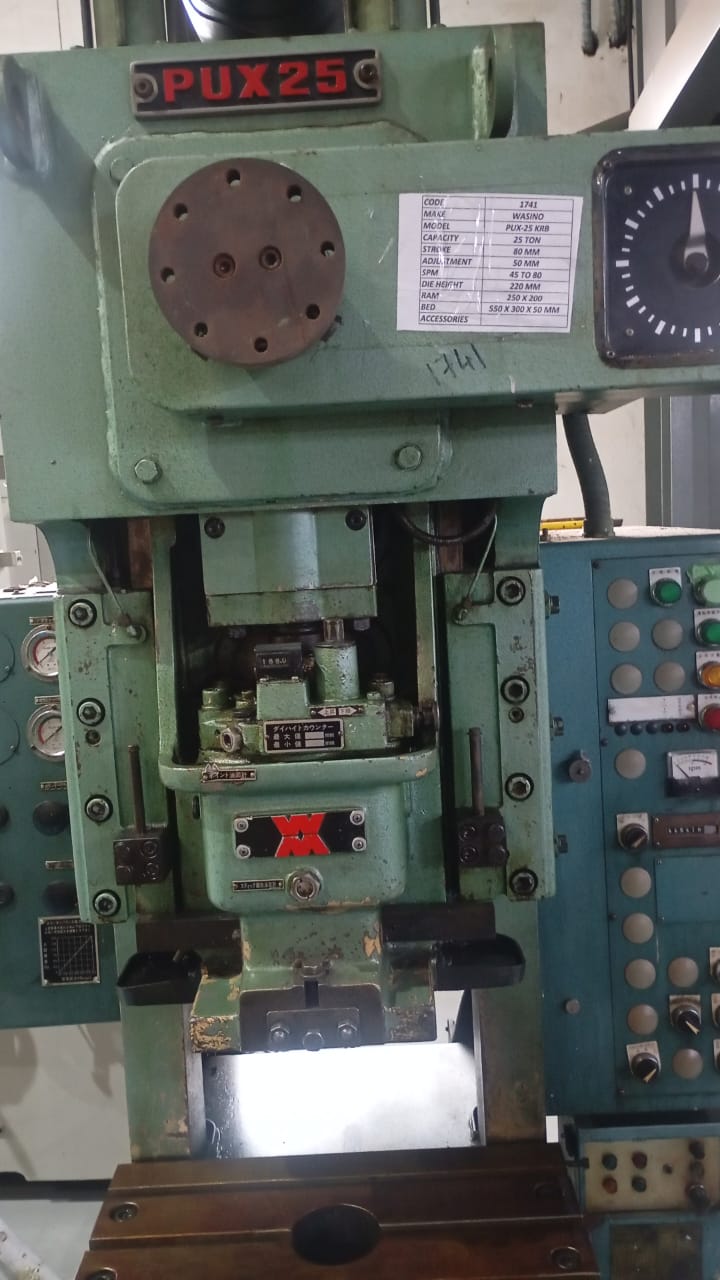

C FRAME SINGLE CRANK PRESS

WASINO JAPAN
MODEL : PUX-25 KRB

SKU # 1741

Brief Specifications/ Details

• Cap : 25Tons
• Stroke : 80mm
• Die Height : 220mm
• Adjustment : 50mm
• SPM : 45~80

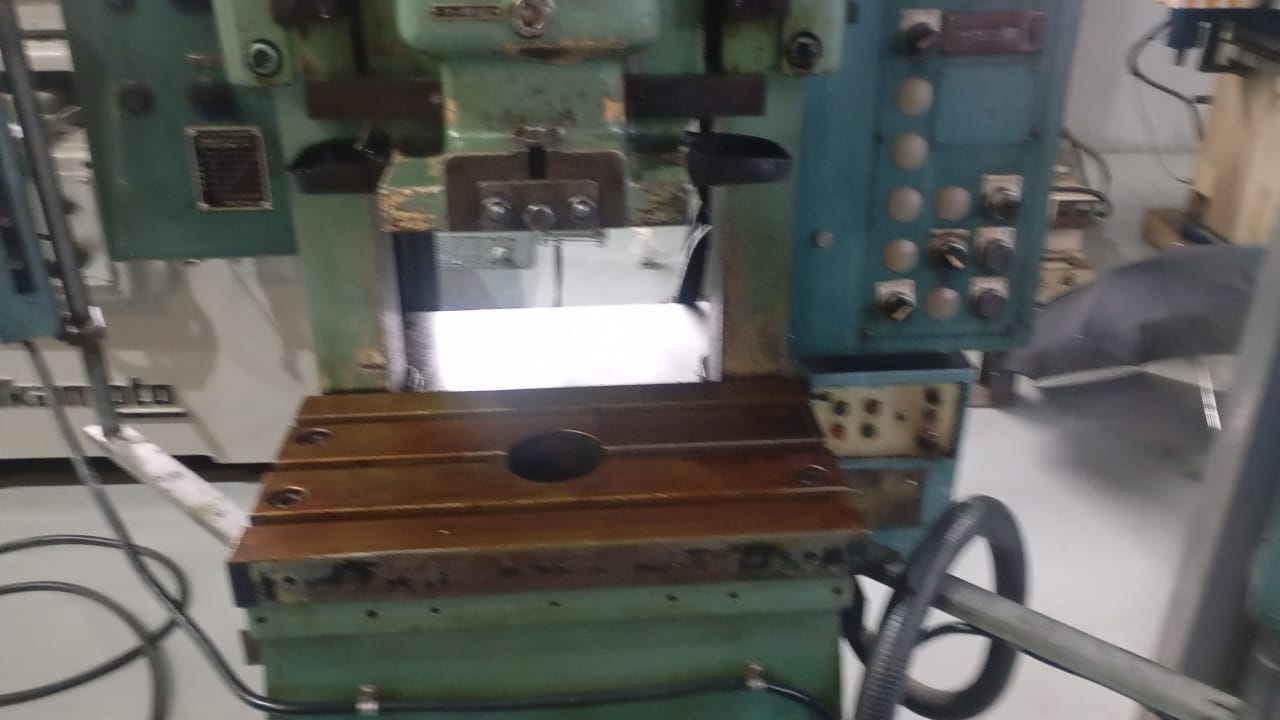

• Slide : 250 x 200mm
• Bolster : 550 x 300mm

Accessories

 Other Details (Approx)

• Clutch : Wet
• Main Motor : KW
• Power Required : 220V/3KVA Phase : 3
• Air Required : 5.5/sqcm
• Machine Size : F-B: 4’-6”, L-R: 4’-4”, HT: 8’-0”
• Machine Weight : 2 Tons
