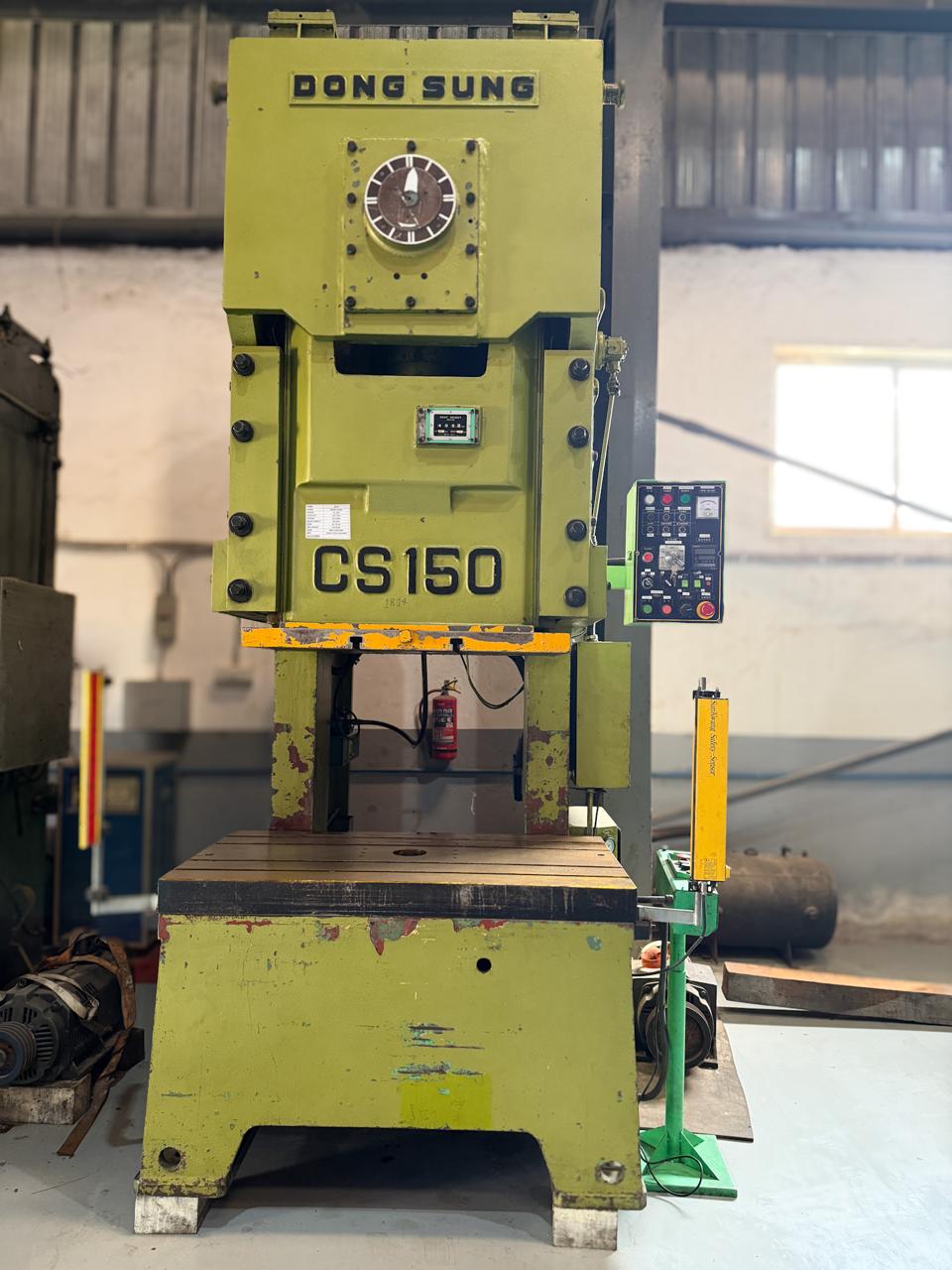

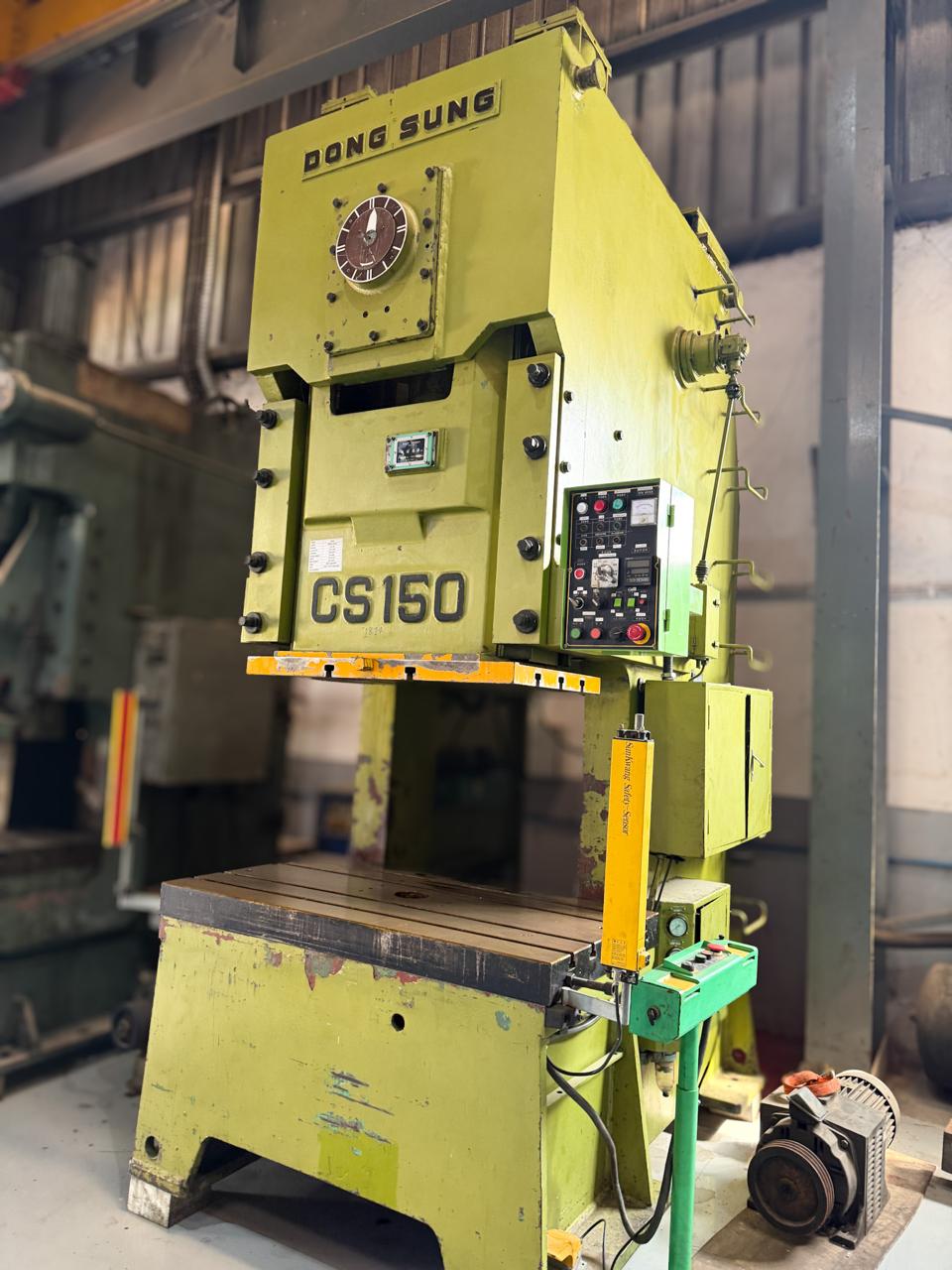

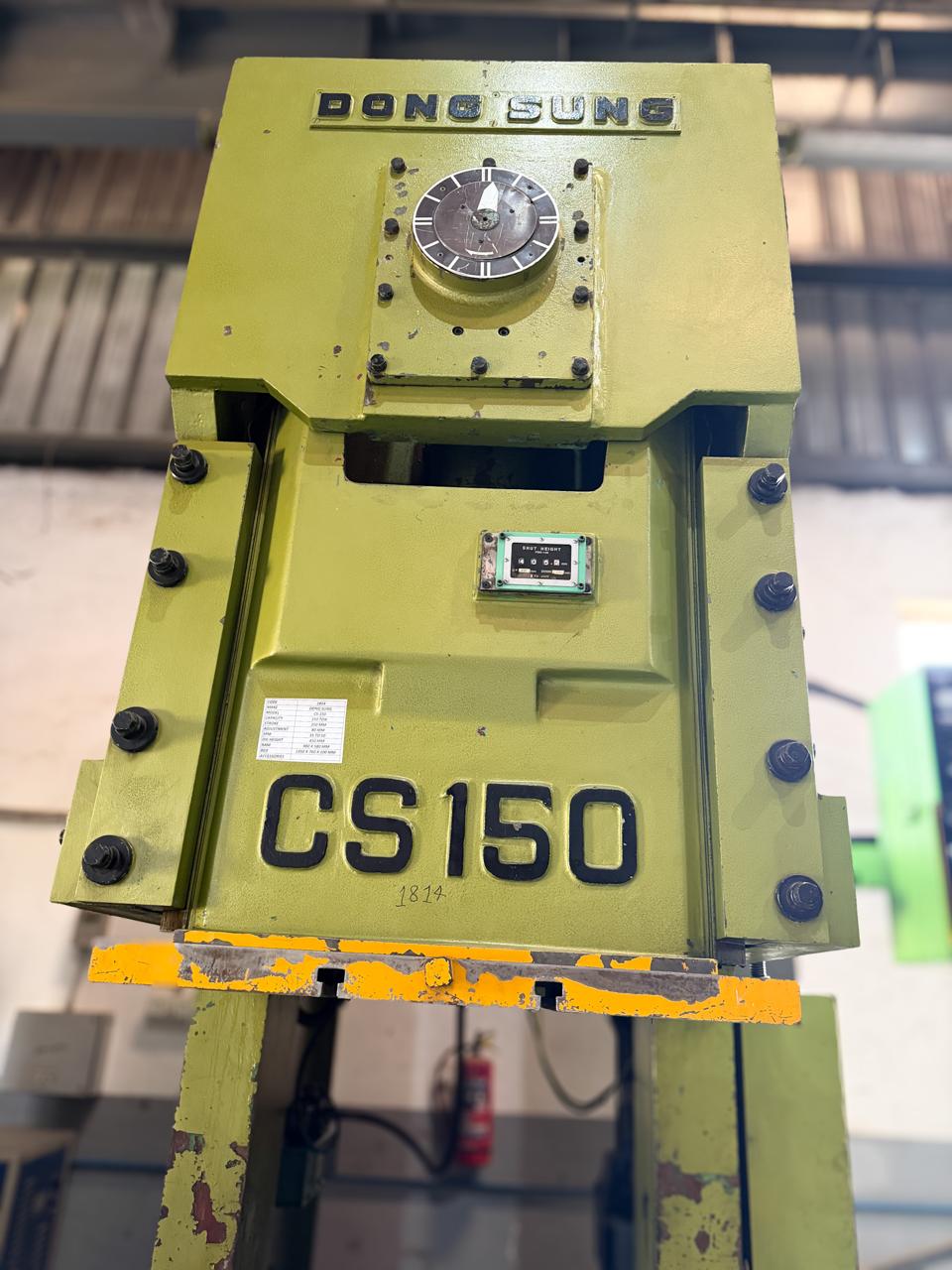

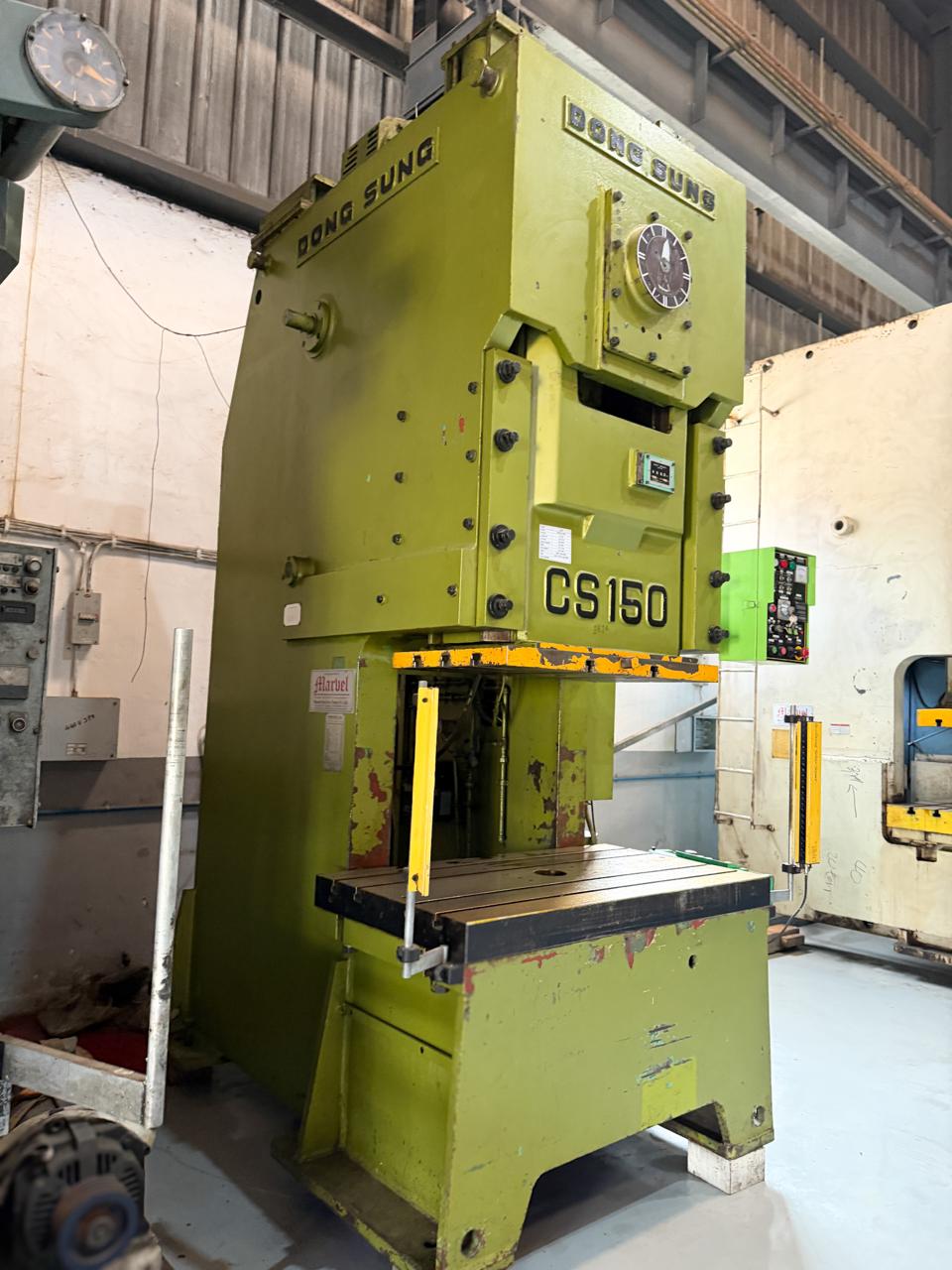

DONGSHIN KOREA MODEL : CS-150
C FRAME SINGLE CRANK PRESS
DONGSHIN KOREA
MODEL : CS-150
SKU # 1814
Brief Specifications/ Details
- Cap : 150Tons
- Stroke : 250mm
- Die Height : 450mm
- Adjustment : 80mm-Electrical
- SPM : 35~50
- Slide : 980 x 580mm

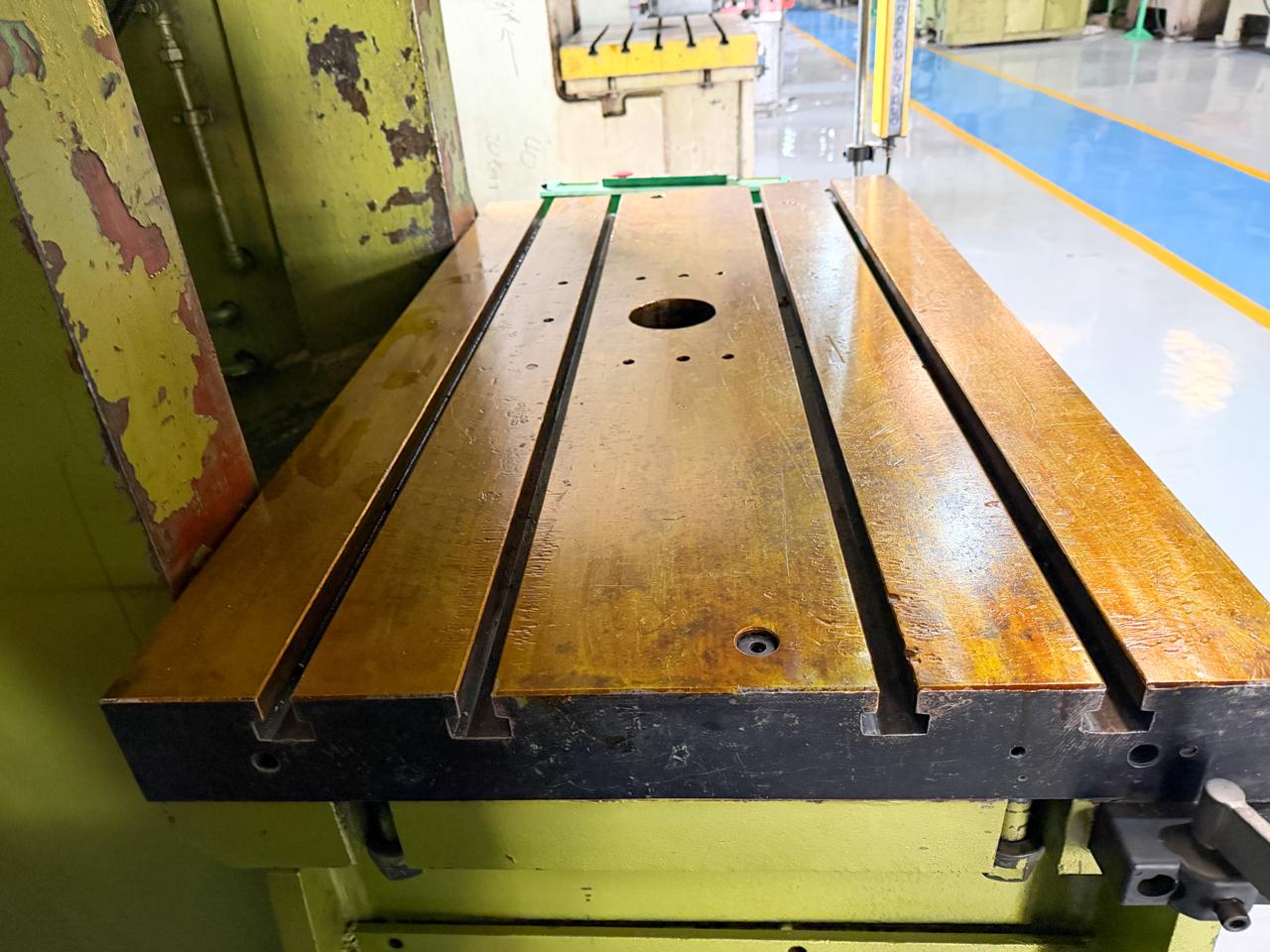

- Bolster : 1350 x 780mm
Other Details (Approx)
- Clutch : Wet
- Main Motor : KW
- Power Required : 380V/0KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 7’-5”, L-R: 6’-0”, HT: 13’-0”
- Machine Weight : 15 Tons
