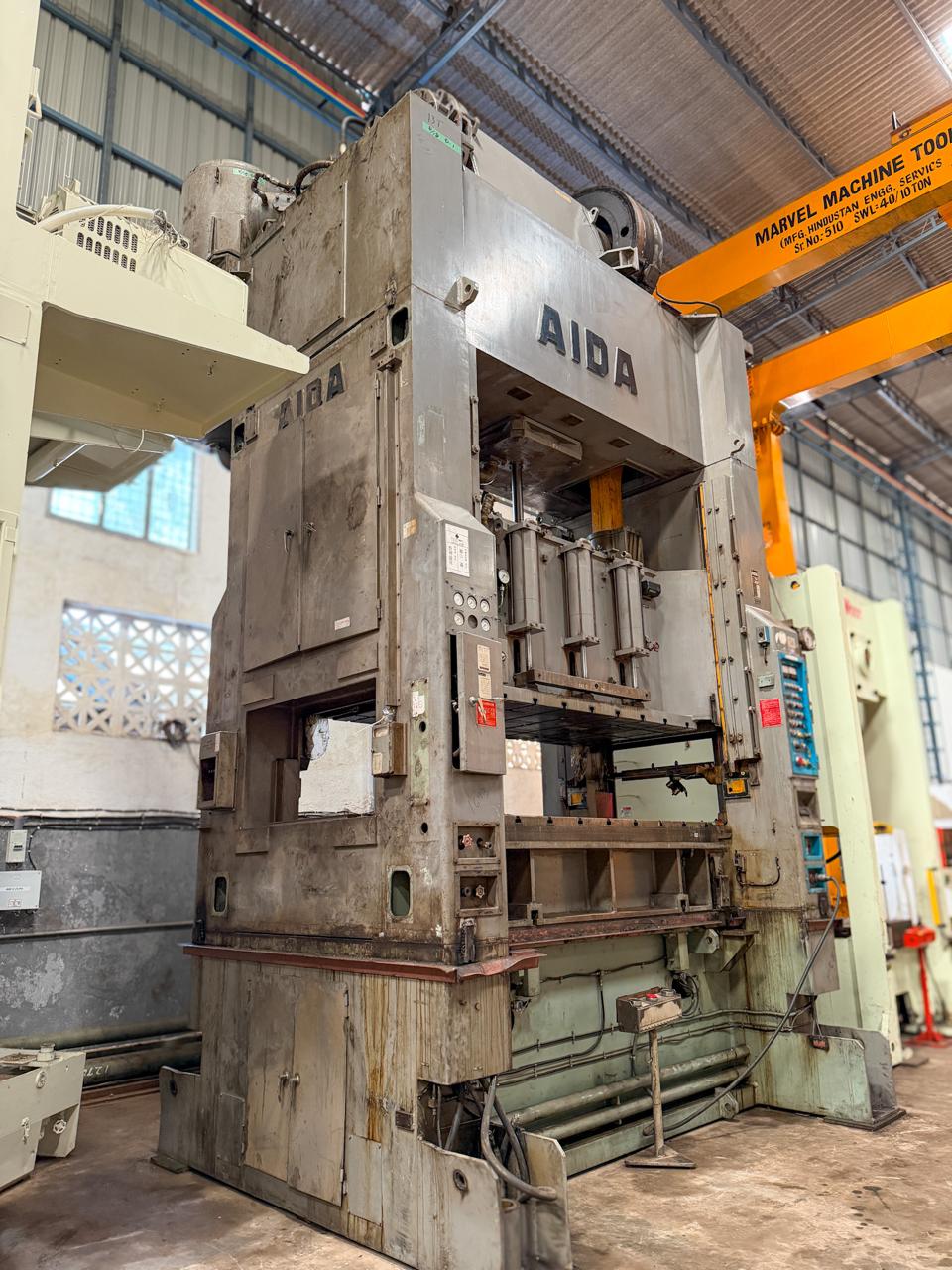

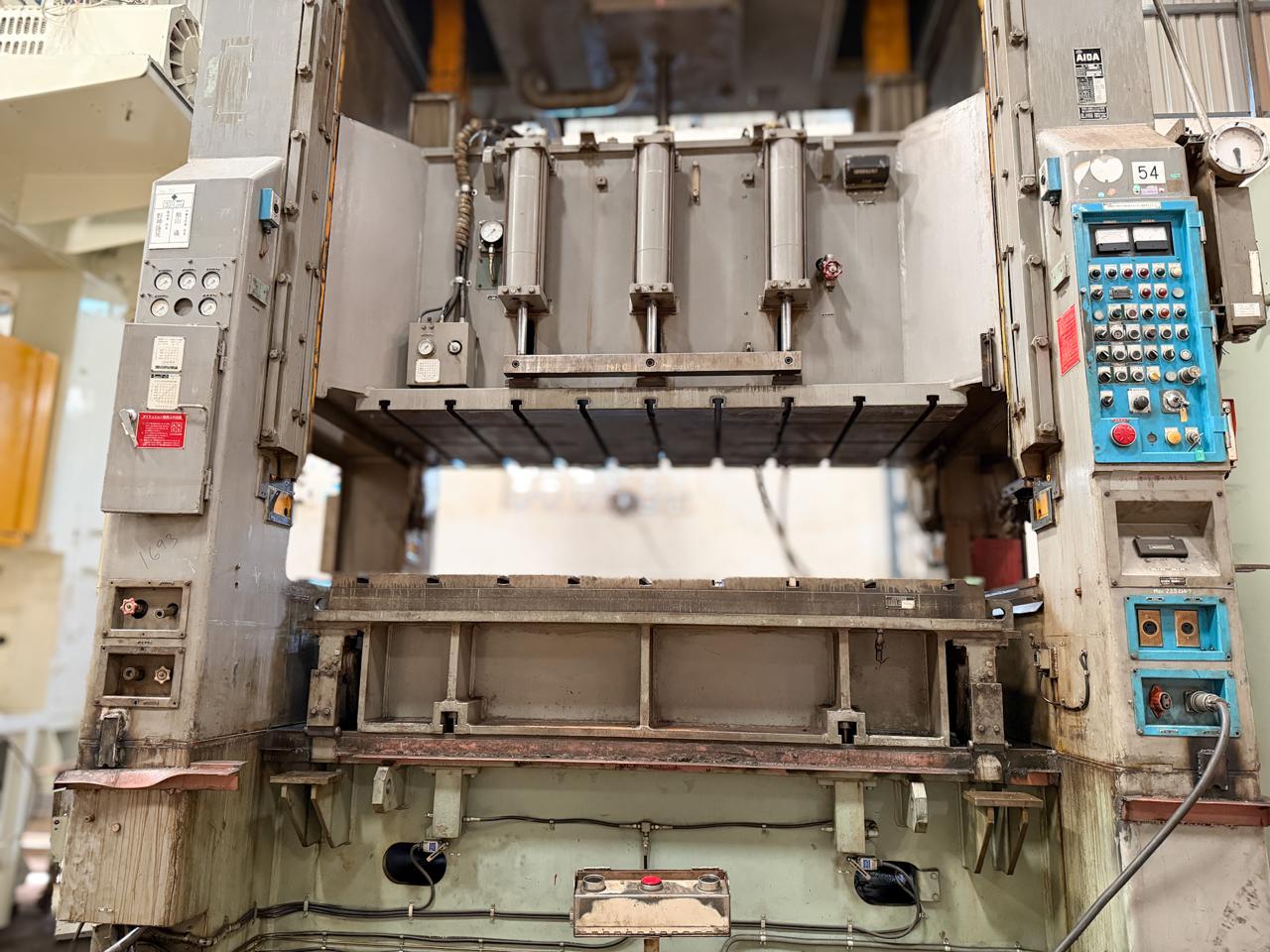

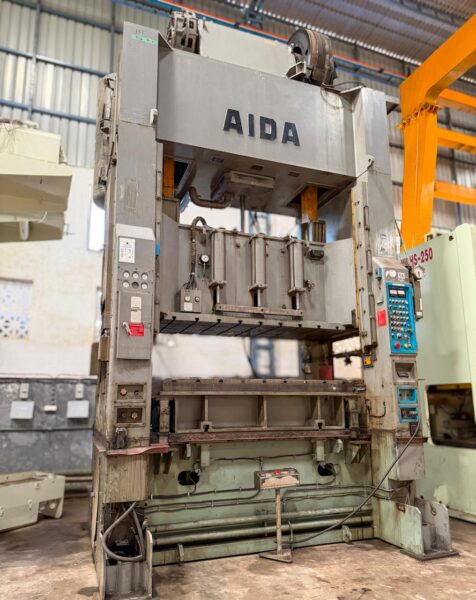

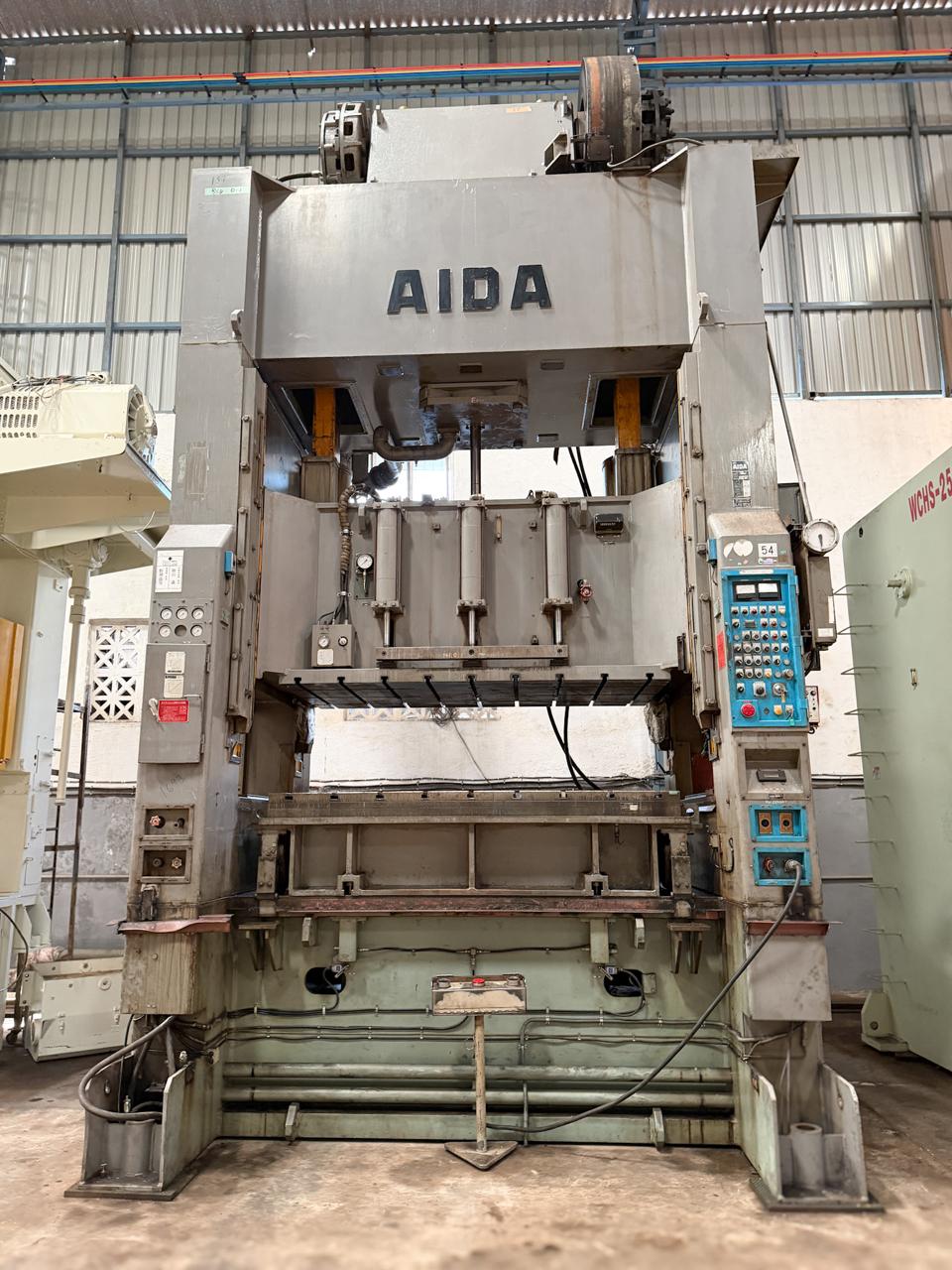

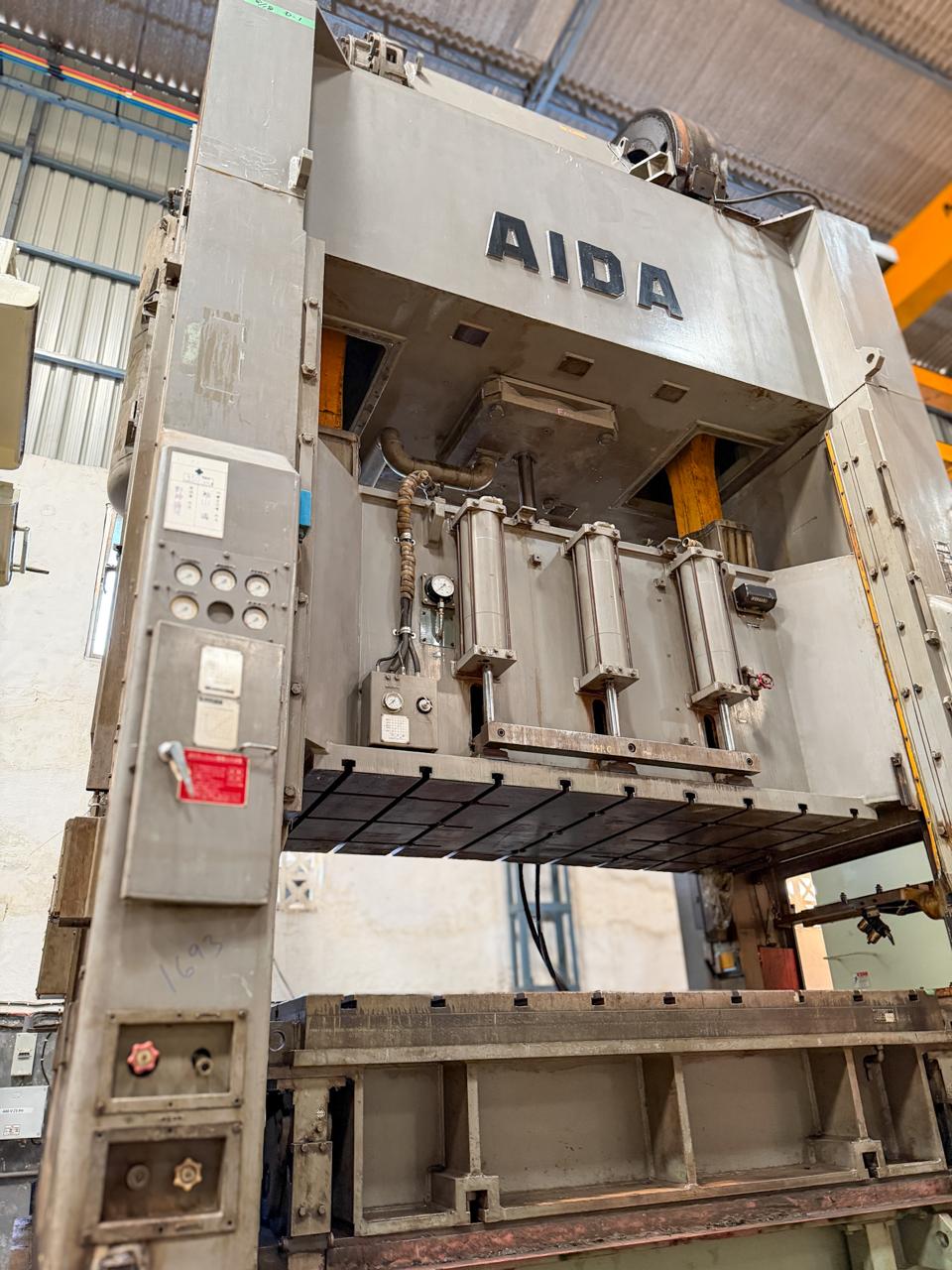

AIDA JAPAN MODEL : D-35
H FRAME DOUBLE CRANK PRESS
AIDA JAPAN
MODEL : D-35
SKU # 1693
Brief Specifications/ Details
- Cap : 350Tons
- Stroke : 450mm
- Die Height : 850mm
- Adjustment : 450mm-Electrical
- SPM : 15~25
- Slide : 2450x 1200mm
- Bolster : 2450x 1350mm
- Window Size : 1300 x 680mm (h)
Accessories
- With Die Cushion & Moving Bolster
- Pad Are : 1900 x 800
- C.D : 150 x 150
Other Details (Approx)
- Clutch : Dry
- Main Motor : 55KW
- Power Required : 220V/110KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 10’-4”, L-R: 13’-7”, HT: 25’-0”
- Machine Weight : Tons
