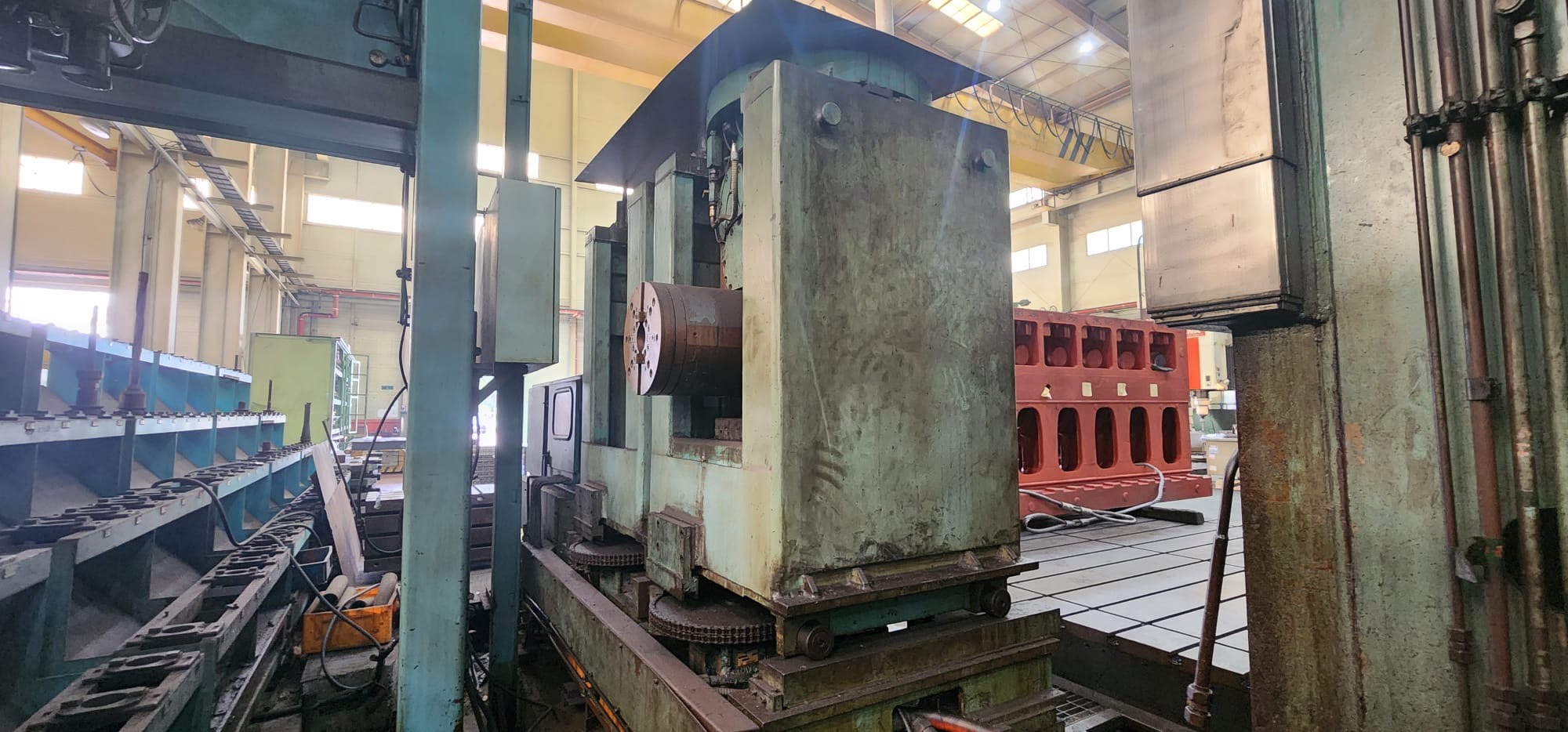

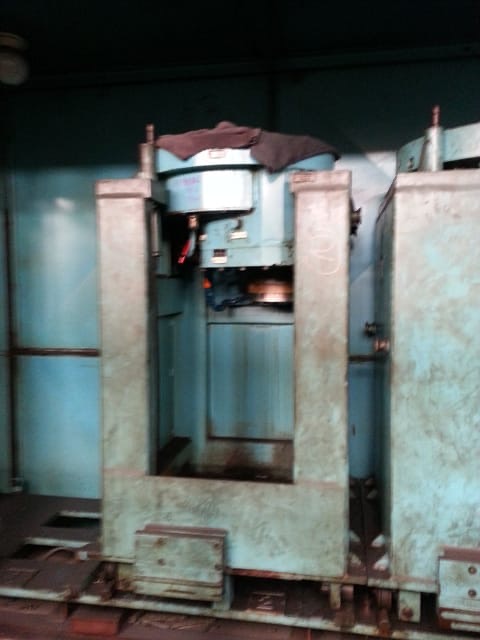

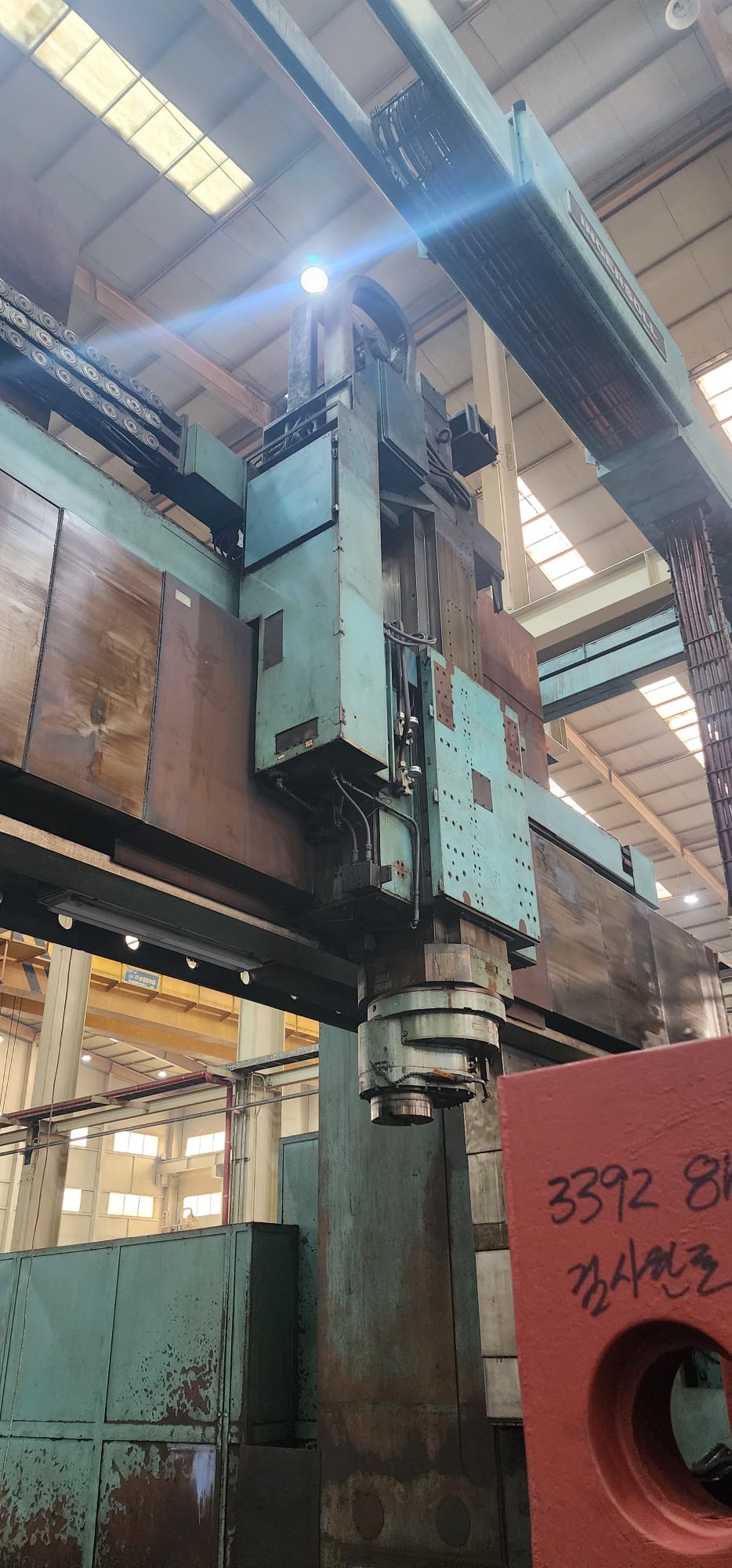

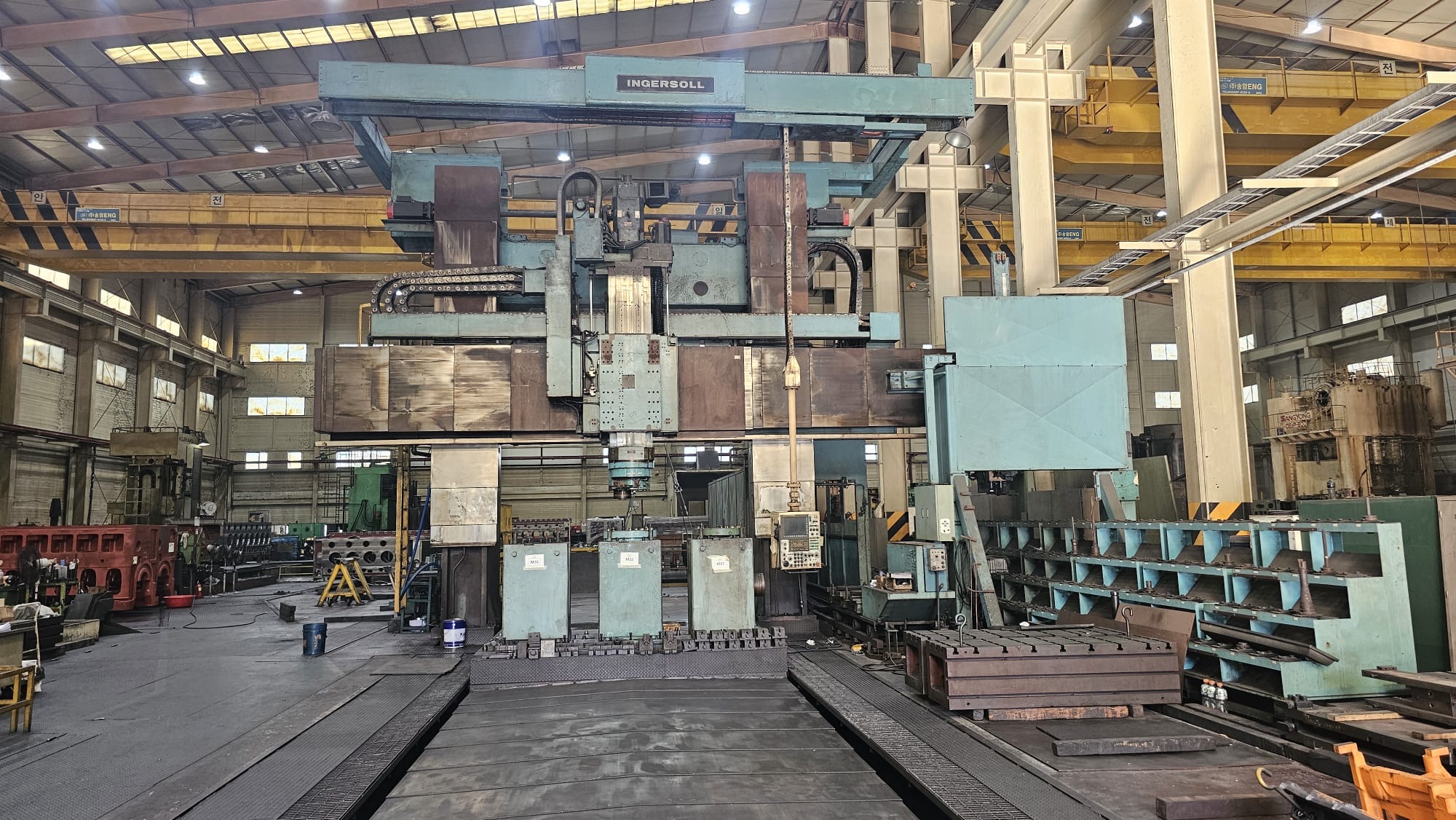

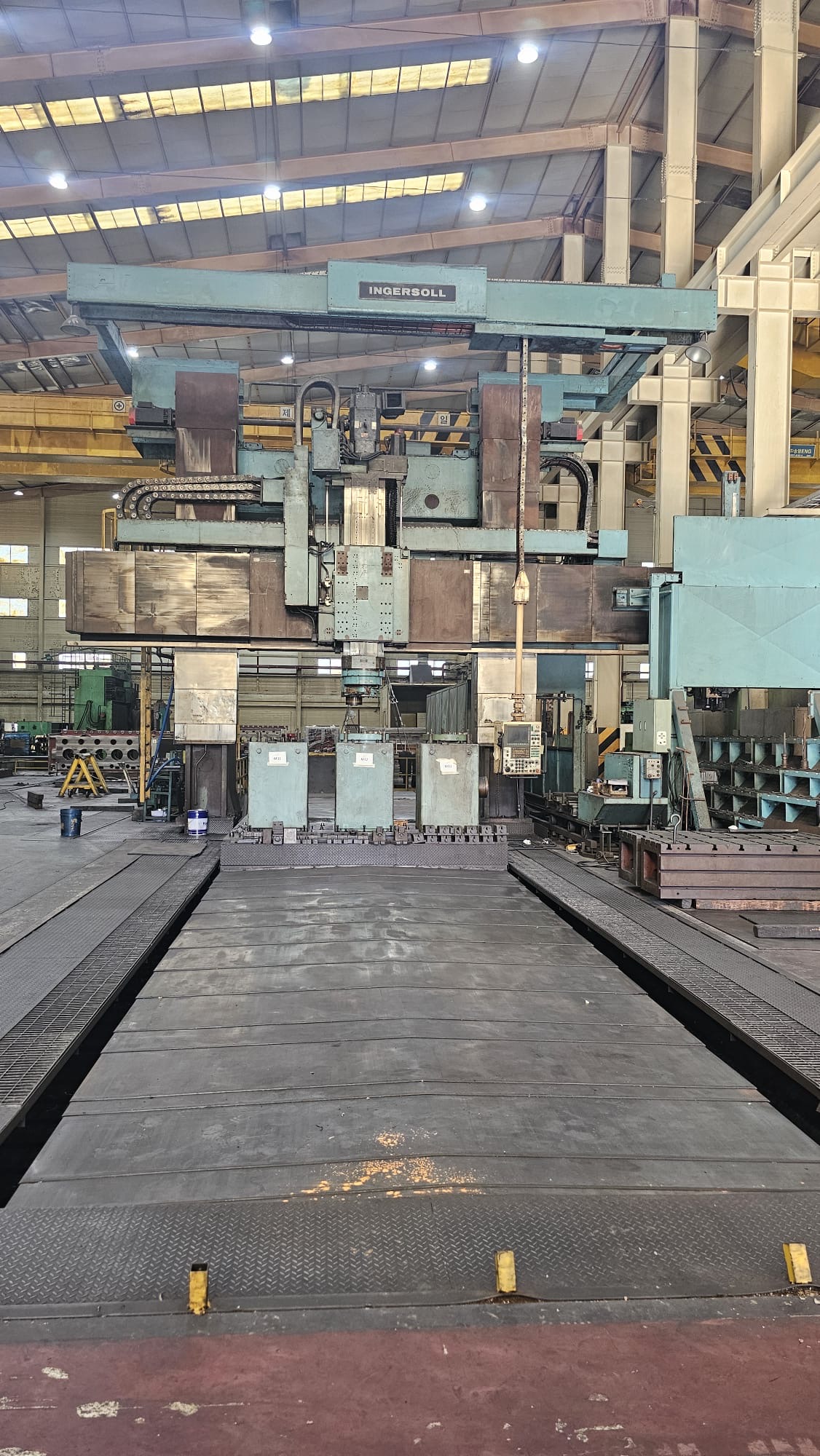

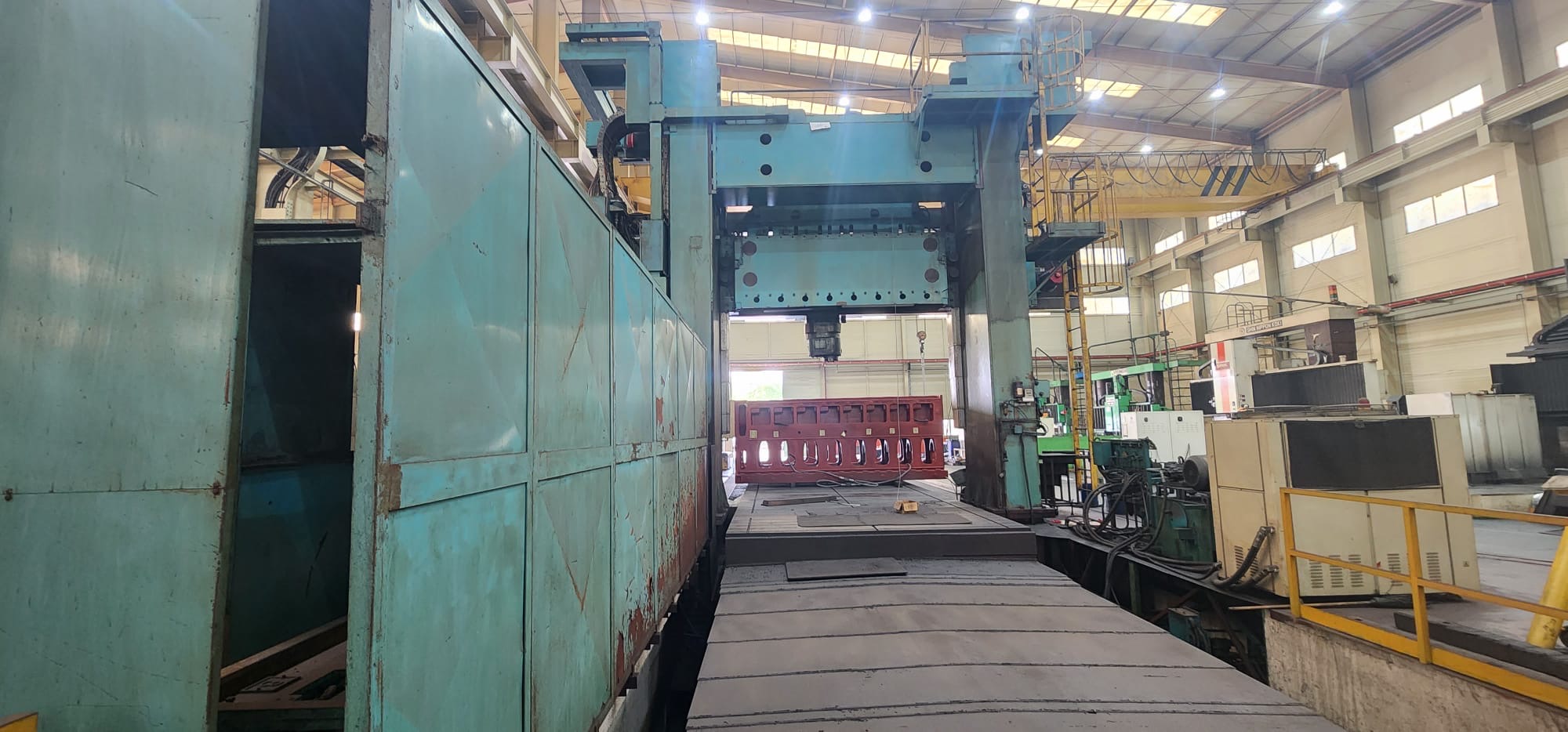

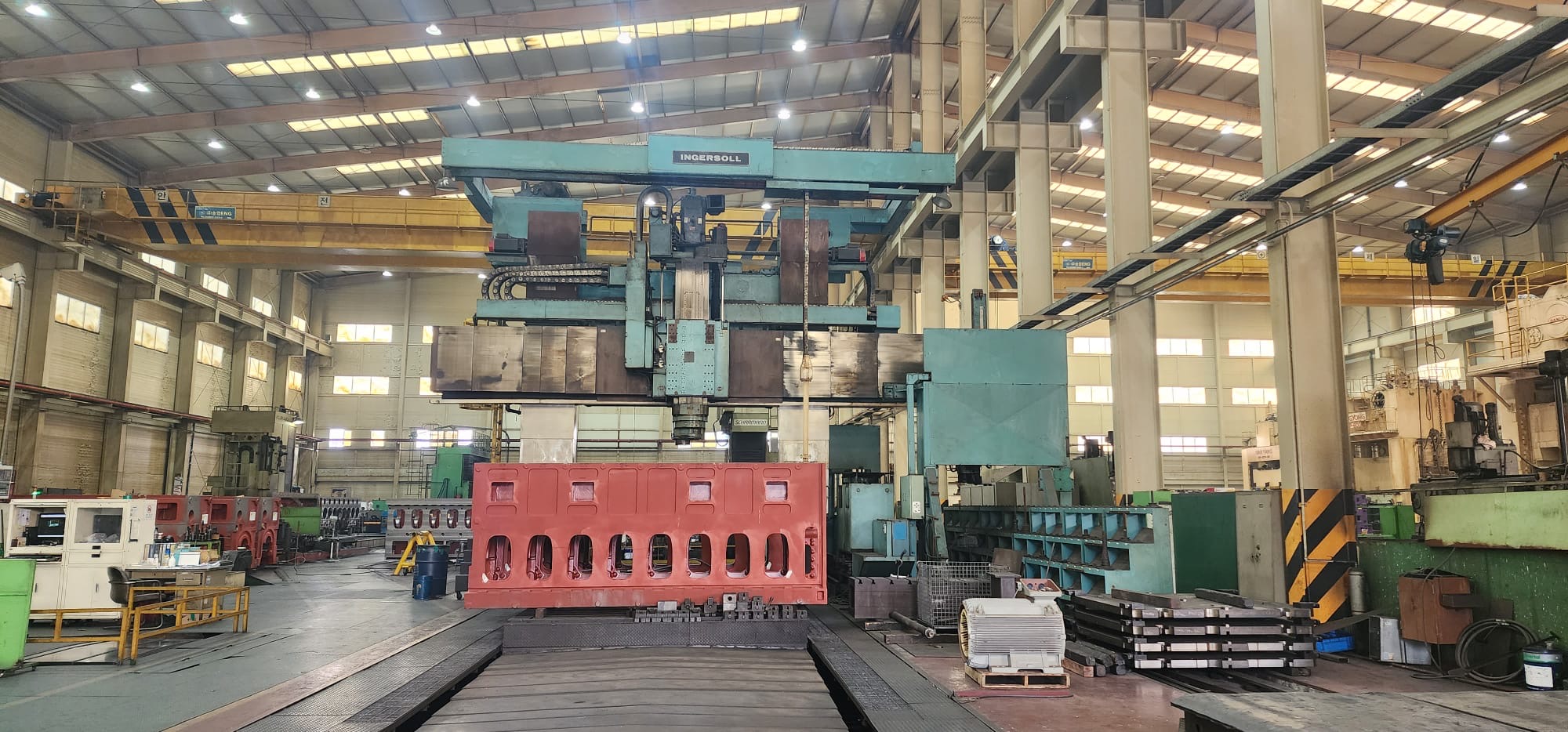

DOUBLE COLUMN MACHINING CENTER

INGERSOLL

HM # 0537

Brief Specifications/ Details

• X-Axis 9,550mm , Y-Axis Cross Travel 5,867mm
• Z-Axis Vertical Travel 990mm
• C-Axis Travel Masterhead Drum 360 Degrees

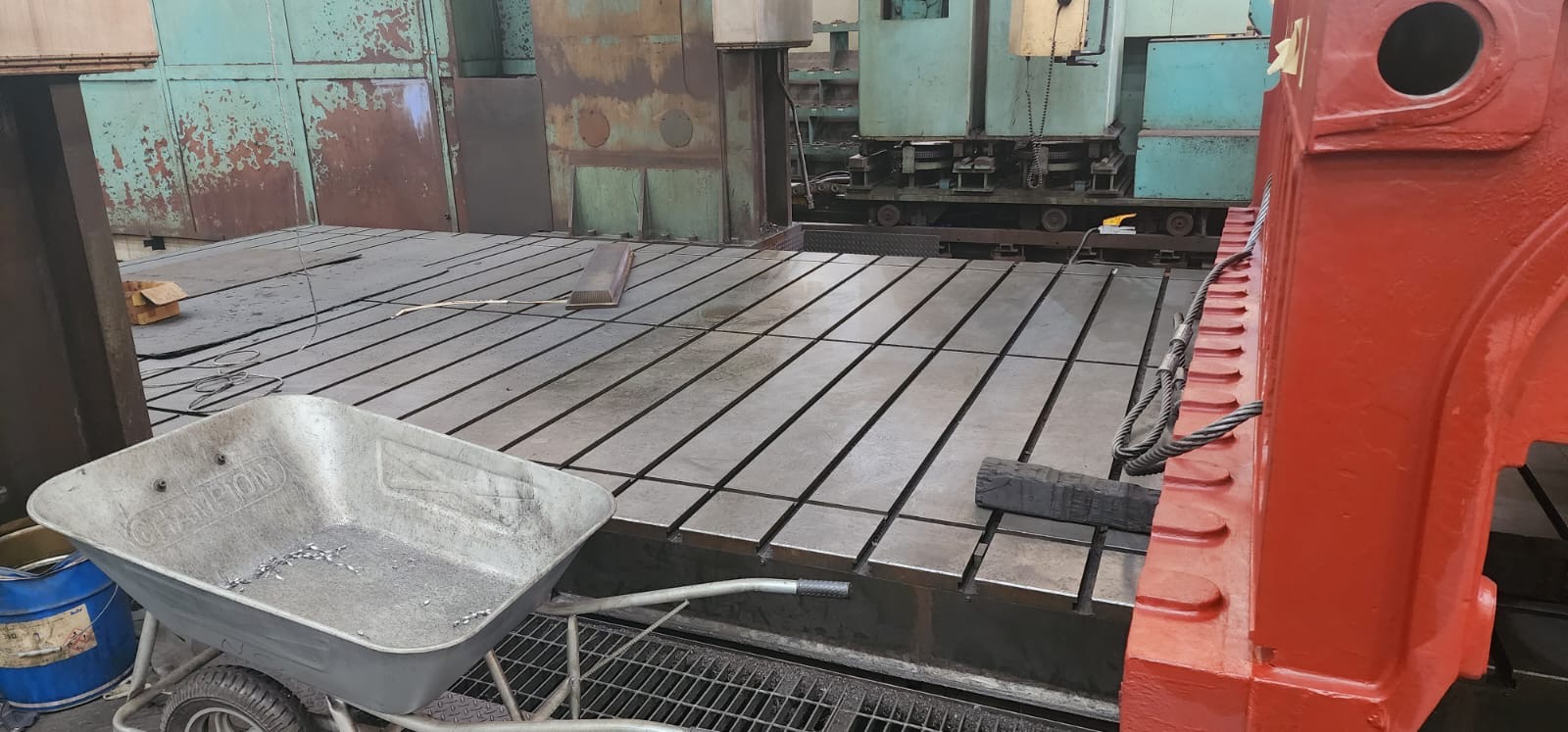

• Table : 10,000mm x 3,479mm
• Table Load Capacity 20 Ton
• Maximum Height 4,425mm
• Maximum Distance Between Columns 3,886mm
• Main Spindle Drive 125 HP

Accessories

 Other Details (Approx)

• Power Required: V/KVA Phase:3
• Main Motor:KW
• Air Required: /sqcm
• Working Space: F-B: 0’-0”, L-R: 0’-0”, HT: 0’-0”
• Packing Size: F-B: 0’-0”, L-R: 0’-0”, HT: 0’-0”
• Net Weight: Tons
