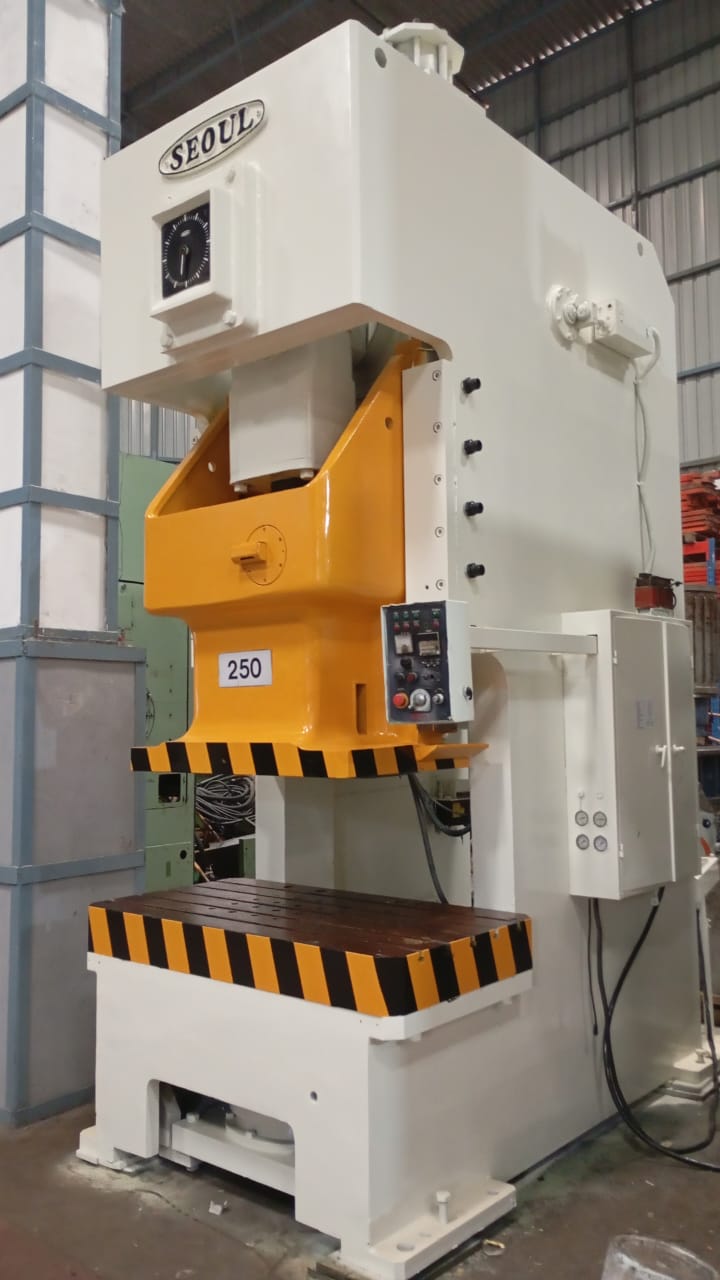

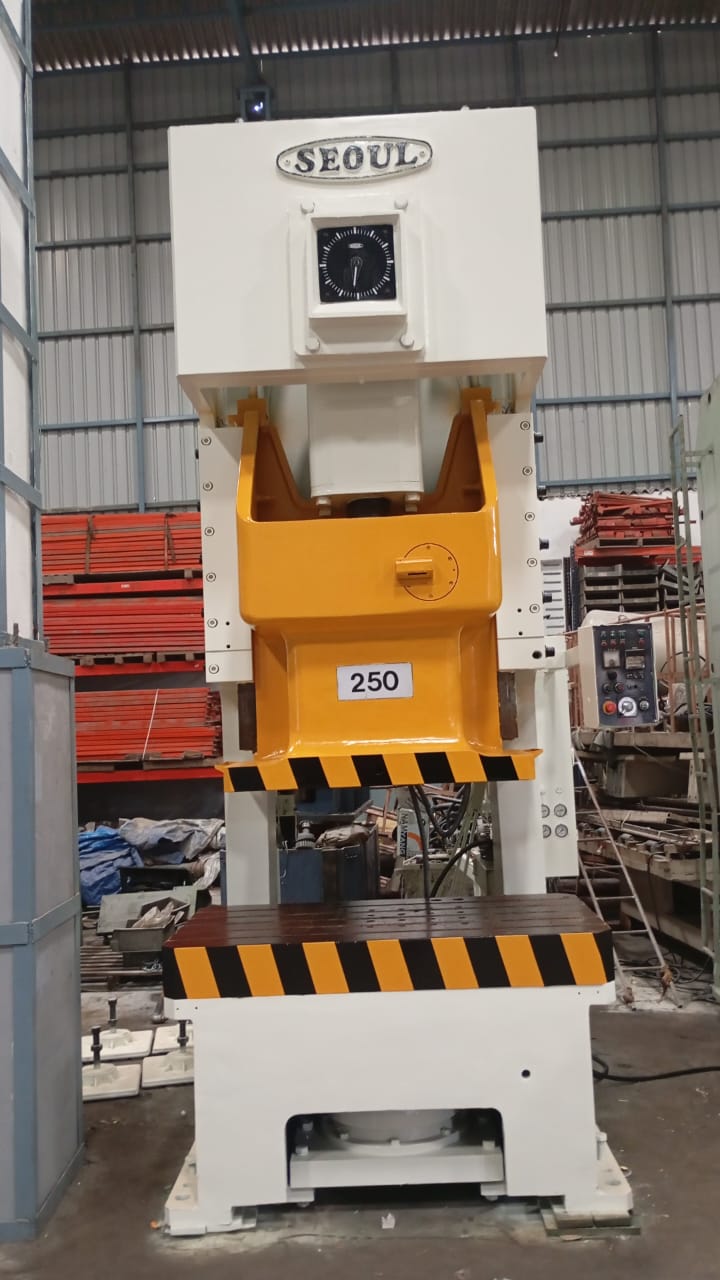

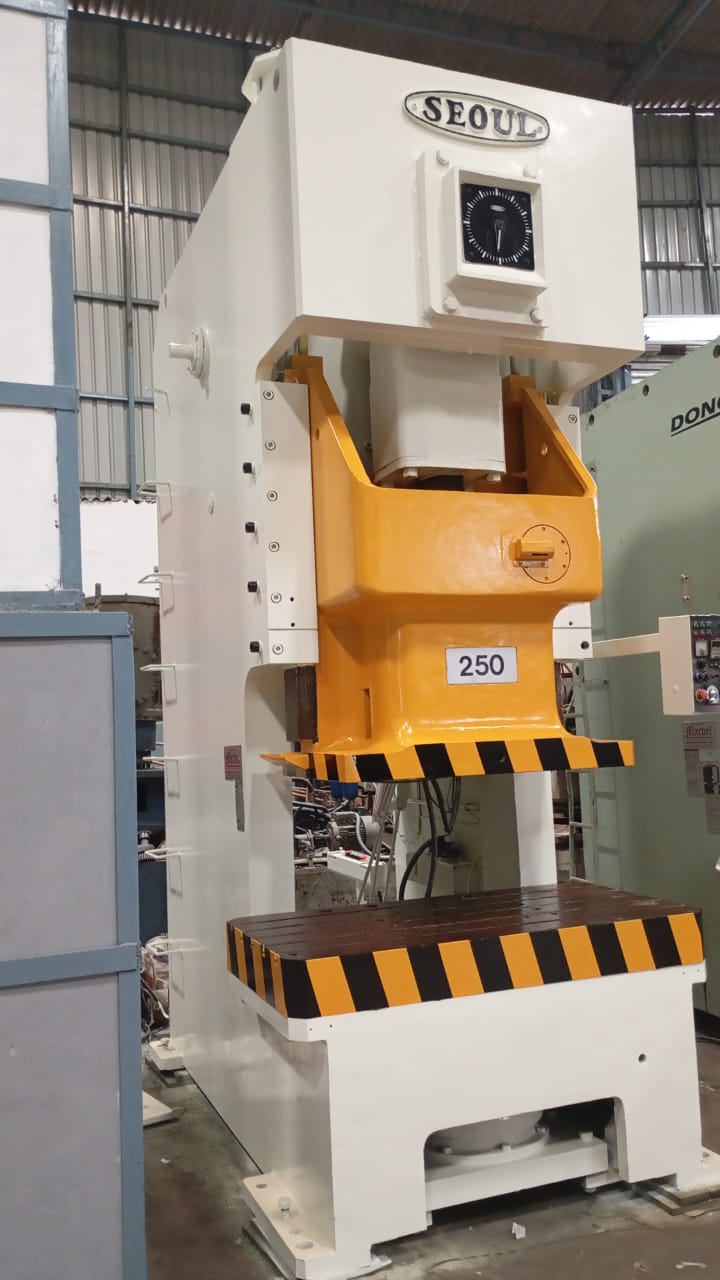

C FRAME SINGLE CRANK PRESS

SEOUL KOREA
MODEL : SSC-250

SKU # 1613

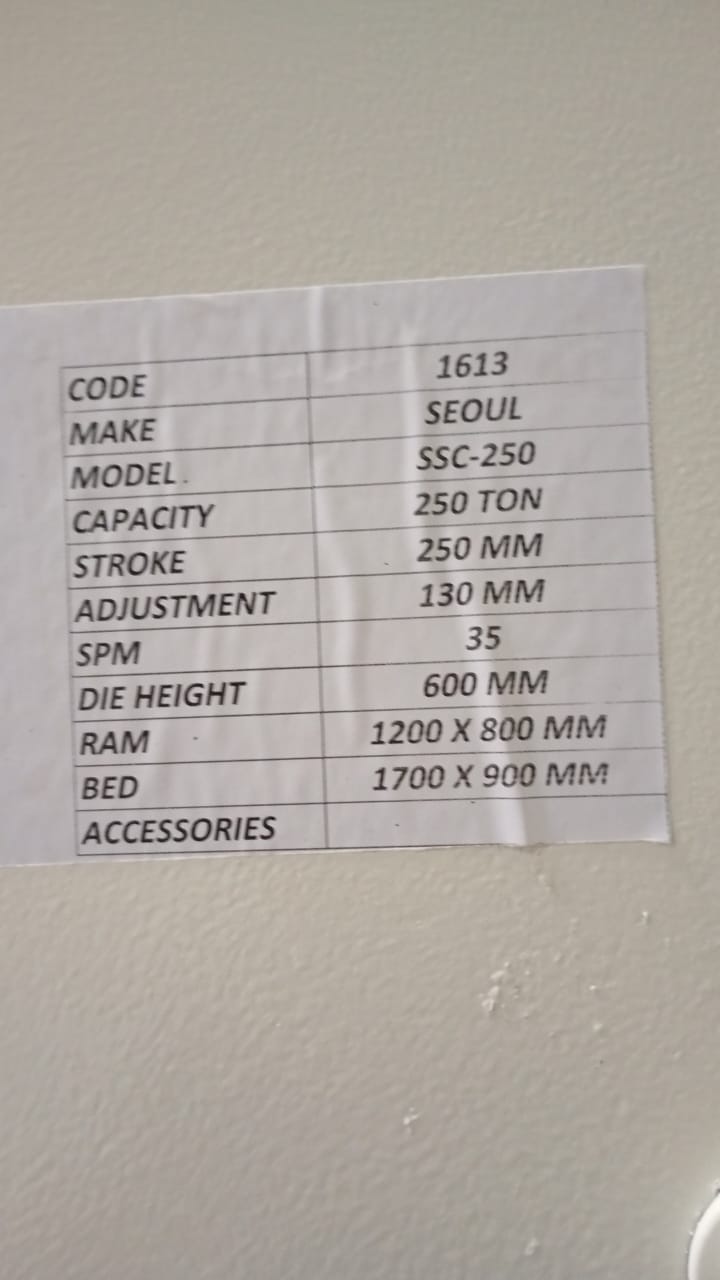

Brief Specifications/ Details

• Cap : 250Tons
• Stroke : 250mm
• Die Height : 600mm
• Adjustment : 130mm-Electrical
• SPM : 35
• Slide : 1200 x 800mm
• Bolster : 1700 x 900mm

Accessories

• With Die Cushion

Click Here For Video

 Other Details (Approx)

• Clutch : Dry
• Main Motor : 18.5KW
• Power Required : 380V/25KVA Phase : 3
• Air Required : 5.5/sqcm
• Machine Size : F-B: 10’-6”, L-R: 6’-0”, HT: 15’-0”
• Machine Weight : 34Tons
