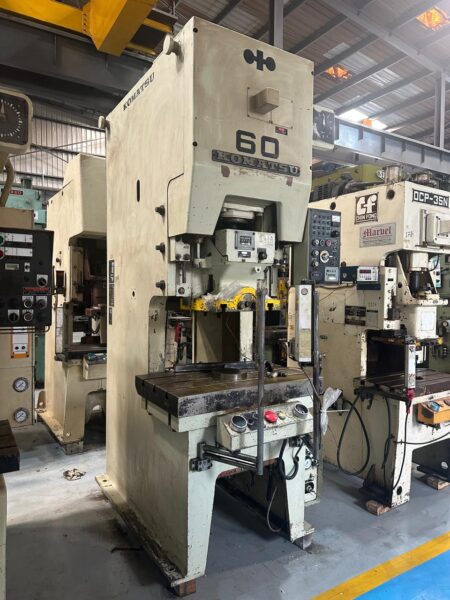

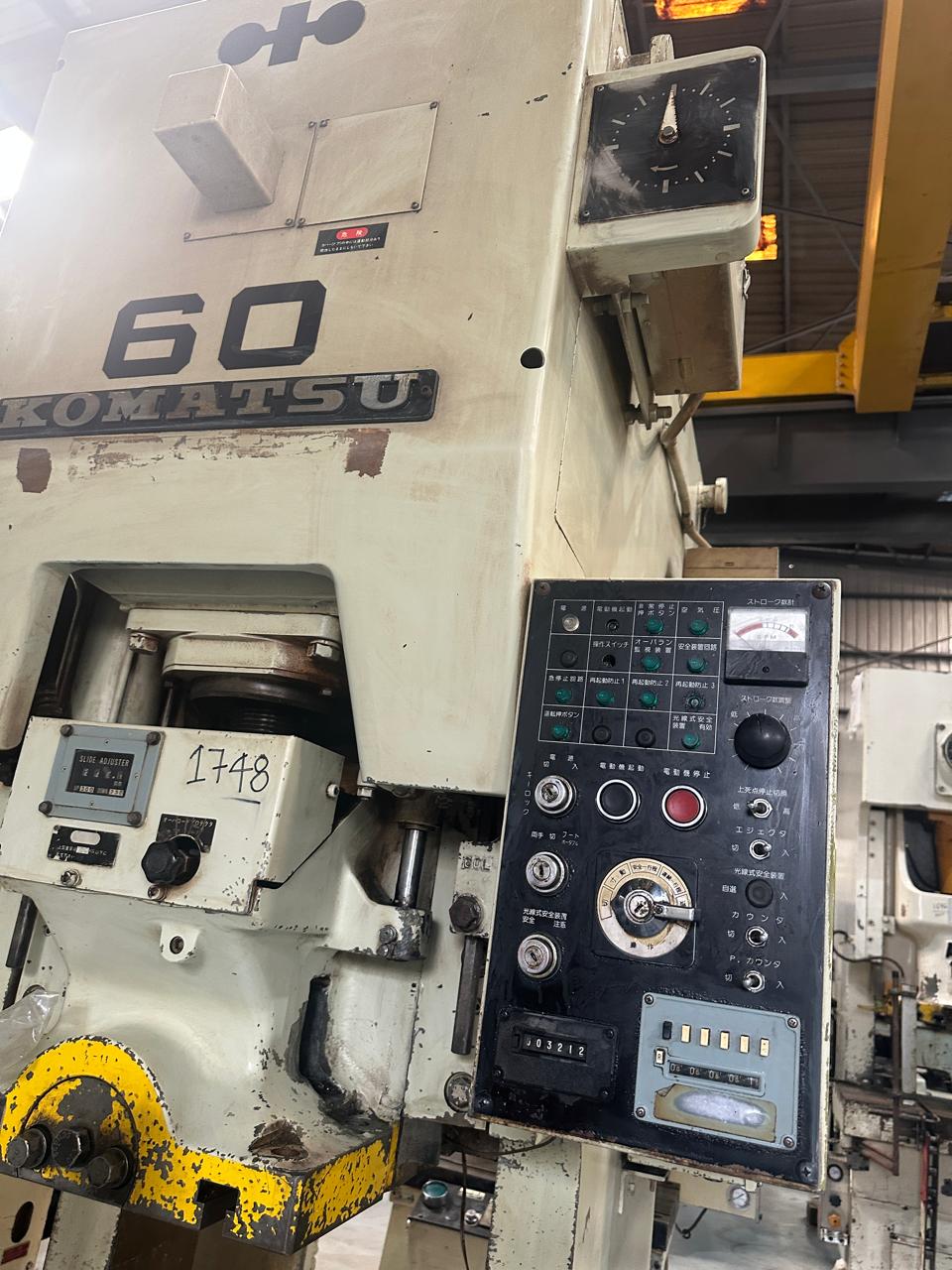

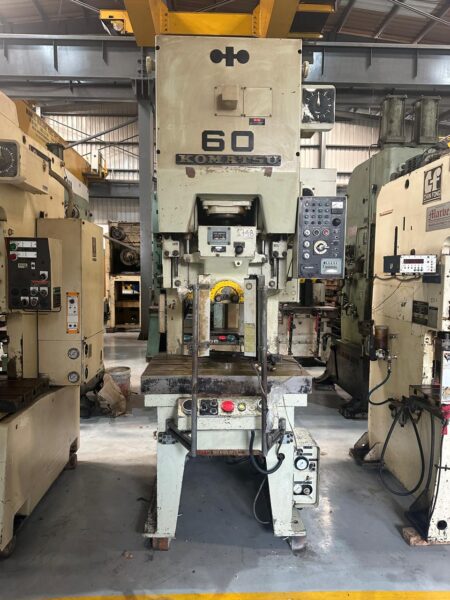

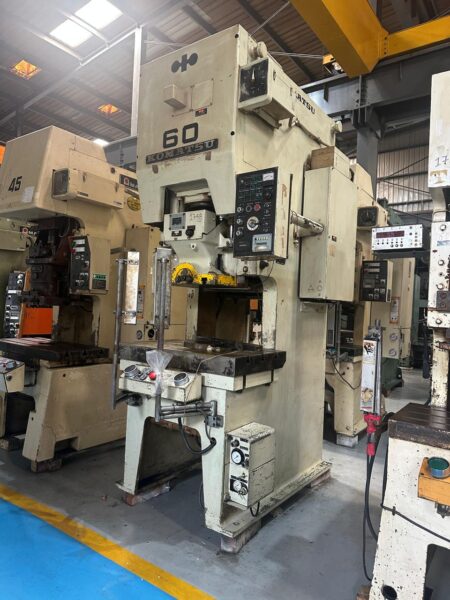

KOMATSU JAPAN MODEL : OBS-60
C FRAME SINGLE CRANK PRESS
KOMATSU JAPAN
MODEL : OBS-60
SKU # 1748
Brief Specifications/ Details
- Cap : 60Tons
- Stroke : 120mm
- Die Height : 310mm
- Adjustment : 70mm-Electrical
- SPM : 40~80
- Slide : 450 x 350mm
- Bolster : 900 x 550mm
Accessories
- With Die Cushion
- Pad Area : 300 x 225
Other Details (Approx)
- Clutch : Wet
- Main Motor : 7.5KW
- Power Required : 220V/6KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 5’-5”, L-R: 4’-0”, HT: 8’-10”
- Machine Weight : 5.5Tons
Related Products
-
+ Quick ViewH-FRAME DOUBLE CRANK
ERFURT GERMANY : MODEL PKZV IV.500
-
+ Quick ViewHORIZONTAL BANDSAW
AMADA JAPAN MODEL: HA250
-
+ Quick ViewPRESS LINE
FUKUI AMADA JAPAN MODEL : MDE-300L2 – SW-200
-
+ Quick ViewUSED MACHINES
SHIBAURA JAPAN MODEL: TSS-13
-
+ Quick ViewUSED MACHINES
WASINO JAPAN MODEL : PUX-55L
-
+ Quick ViewH-FRAME DOUBLE CRANK
SIMPAC KOREA MODEL : MC2-400
-
+ Quick ViewC-FRAME SINGLE CRANK

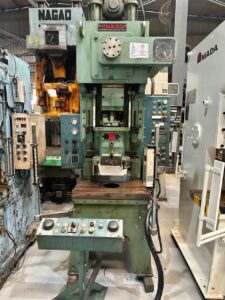

WASINO JAPAN MODEL : PUX – 35 KRB
-
