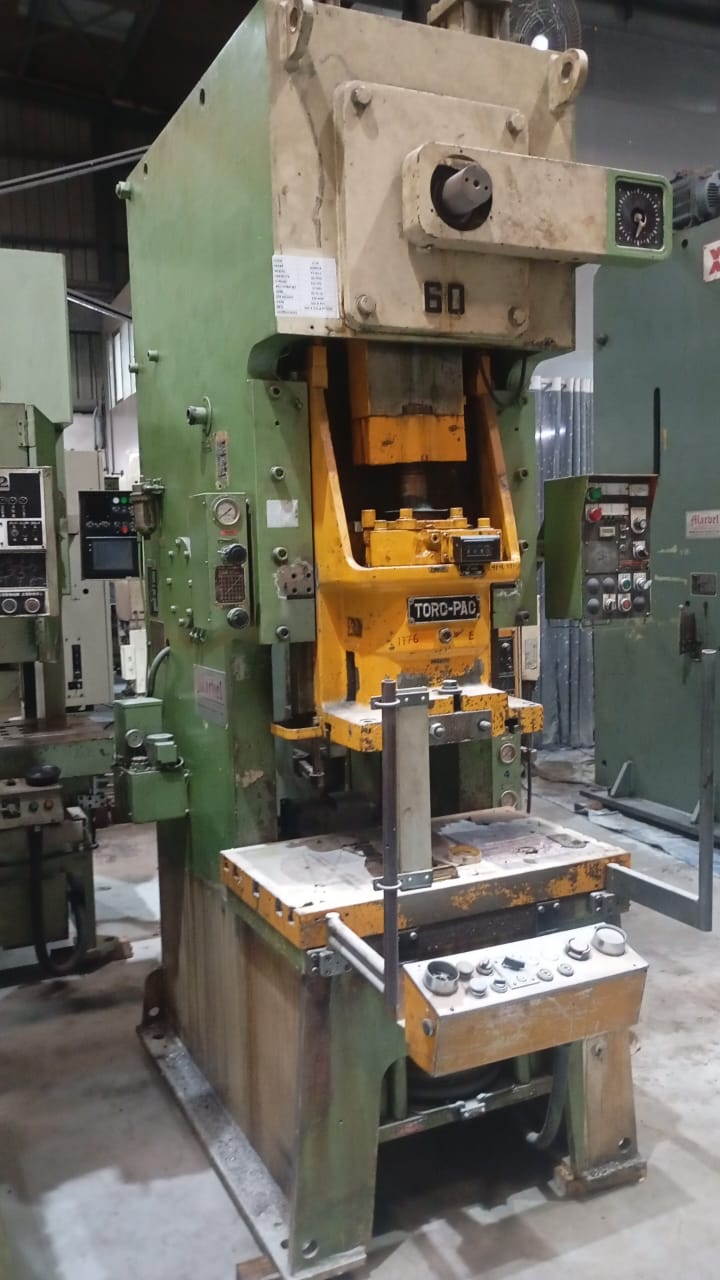

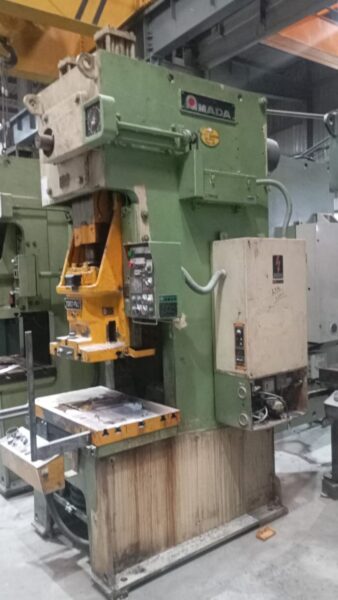

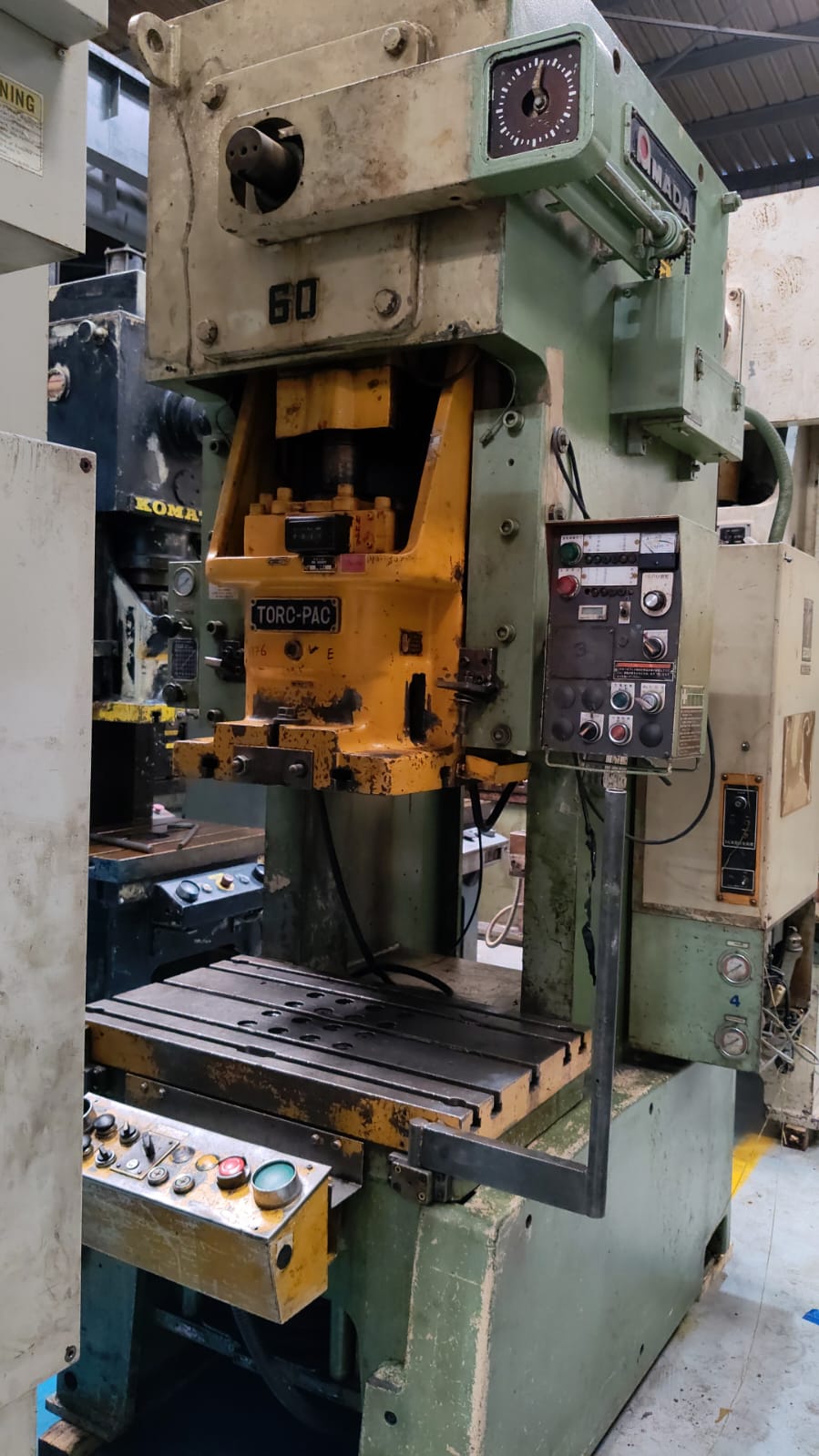

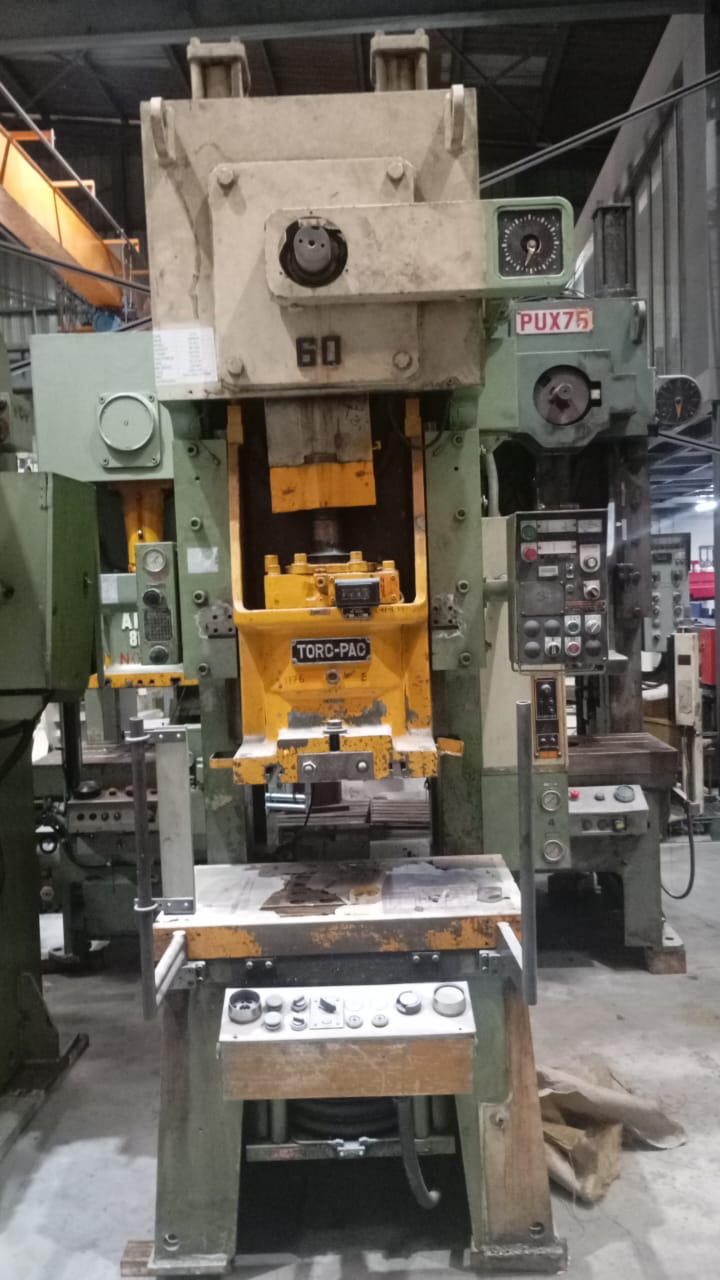

C FRAME SINGLE CRANK PRESS

AMADA JAPAN
MODEL : TP-60C

SKU # 1776

Brief Specifications/ Details

• Cap : 60Tons
• Stroke : 160mm
• Die Height : 335mm
• Adjustment : 70mm-Electrical
• SPM : 40~80
• Slide : 500 x 400mm
• Bolster : 900 x 550mm

Accessories

• With Die Cushion
• Pad Area : 230 x 230mm

Click Here For Video

 Other Details (Approx)

• Clutch : Wet
• Main Motor : 5.5KW
• Power Required : 220V/6.5KVA Phase : 3
• Air Required : 5.5/sqcm
• Machine Size : F-B: 5’-10”, L-R: 4’-7”, HT: 10’-0”
• Machine Weight : 6 Tons
