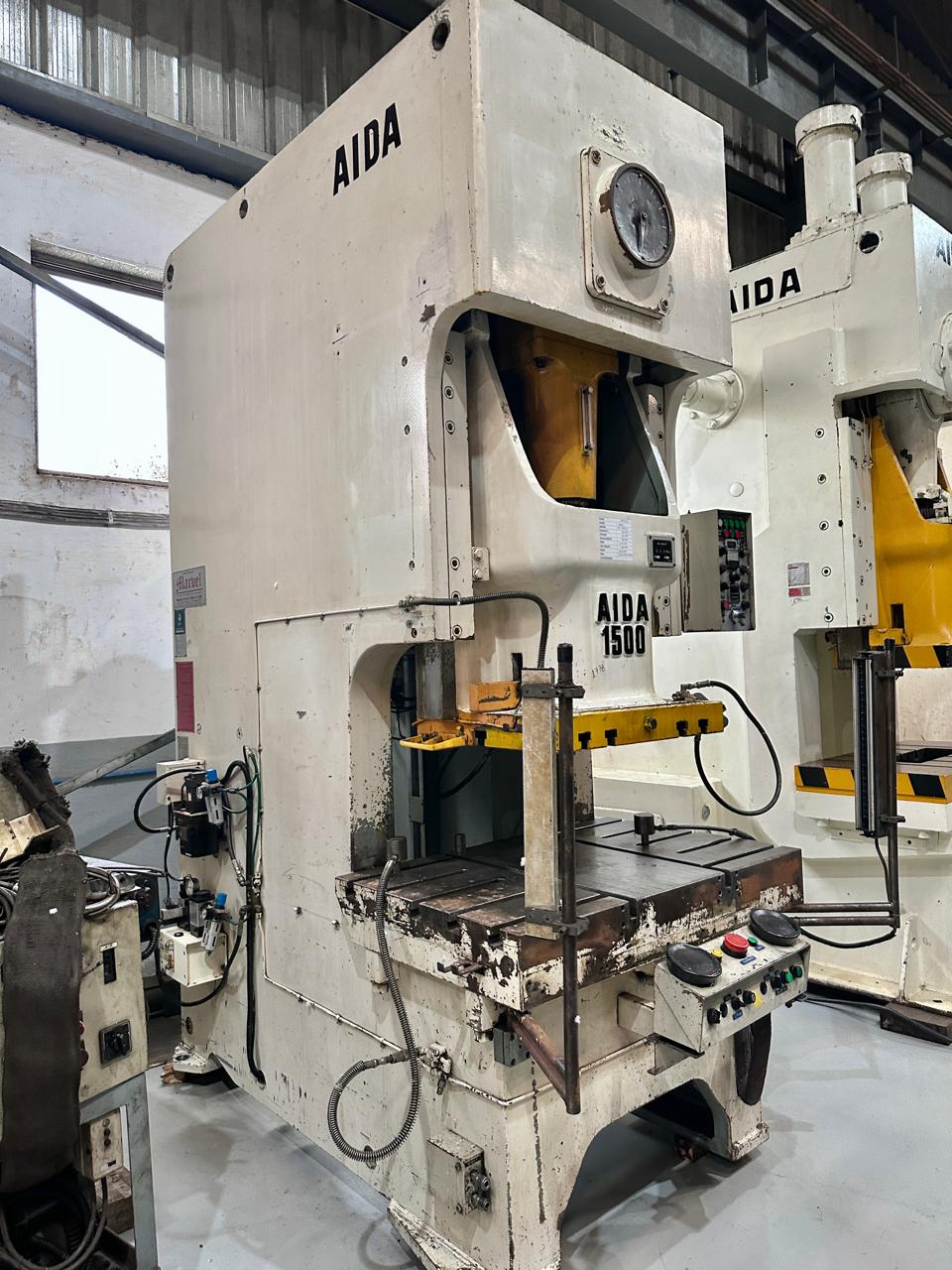

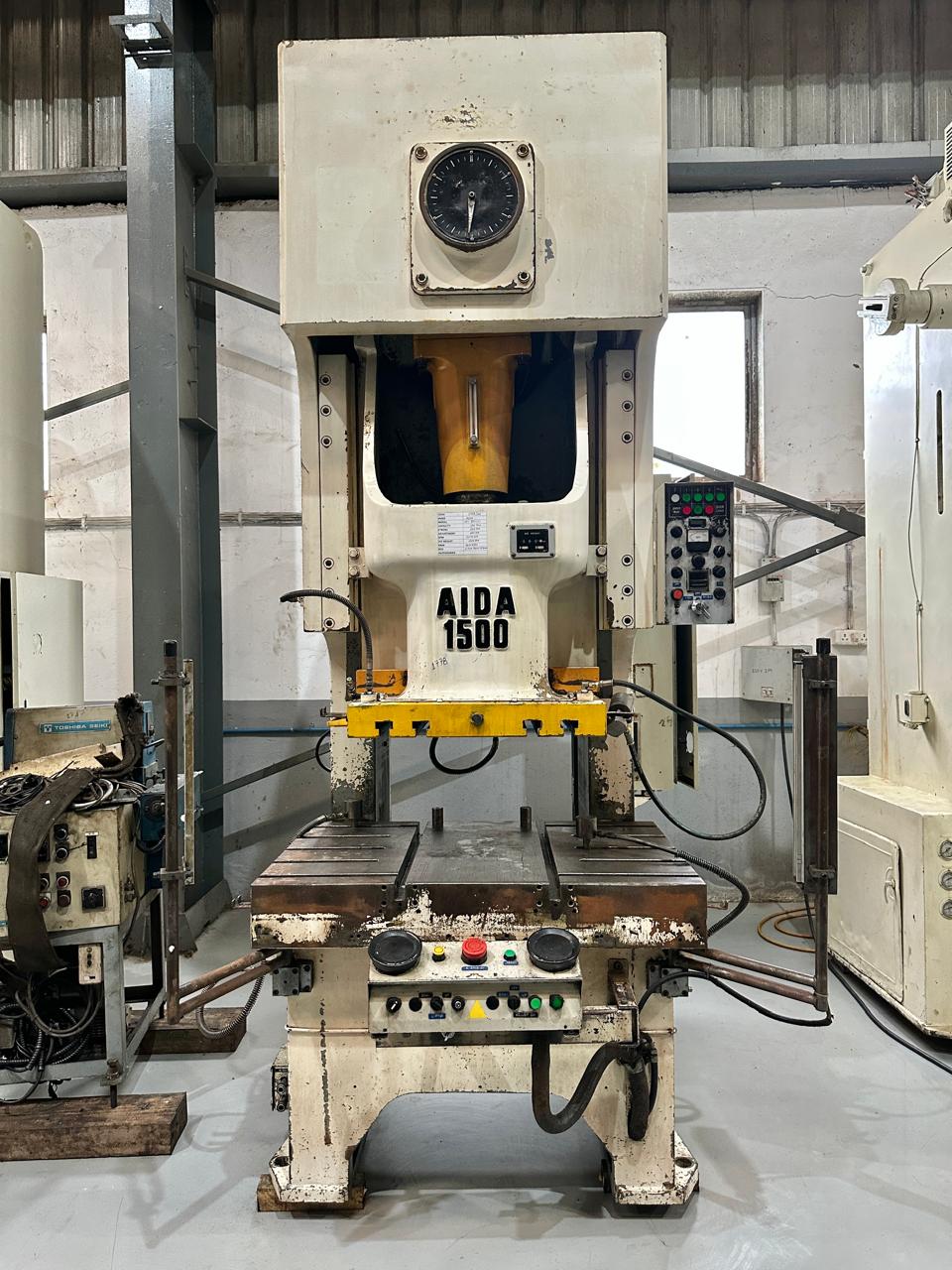

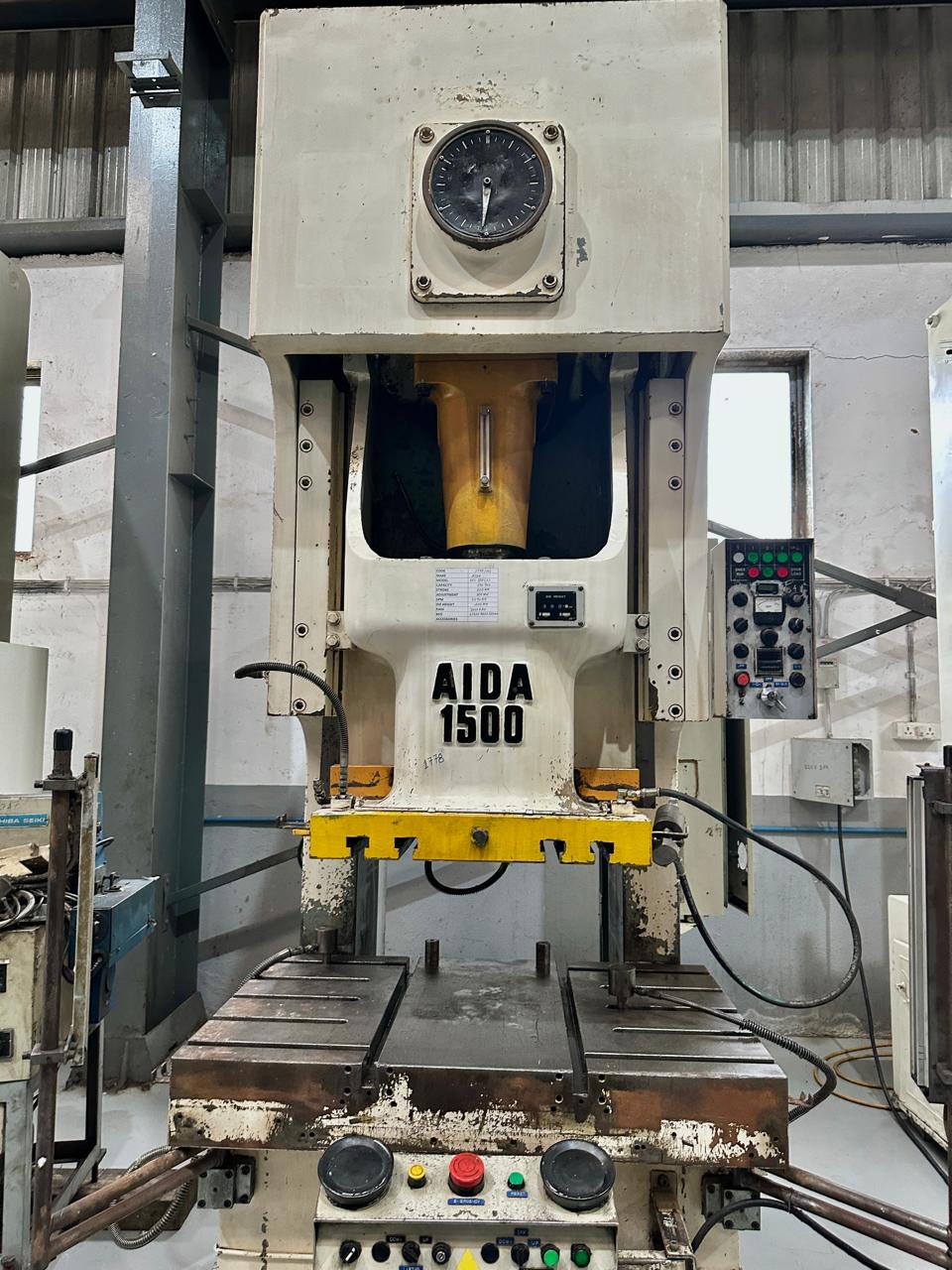

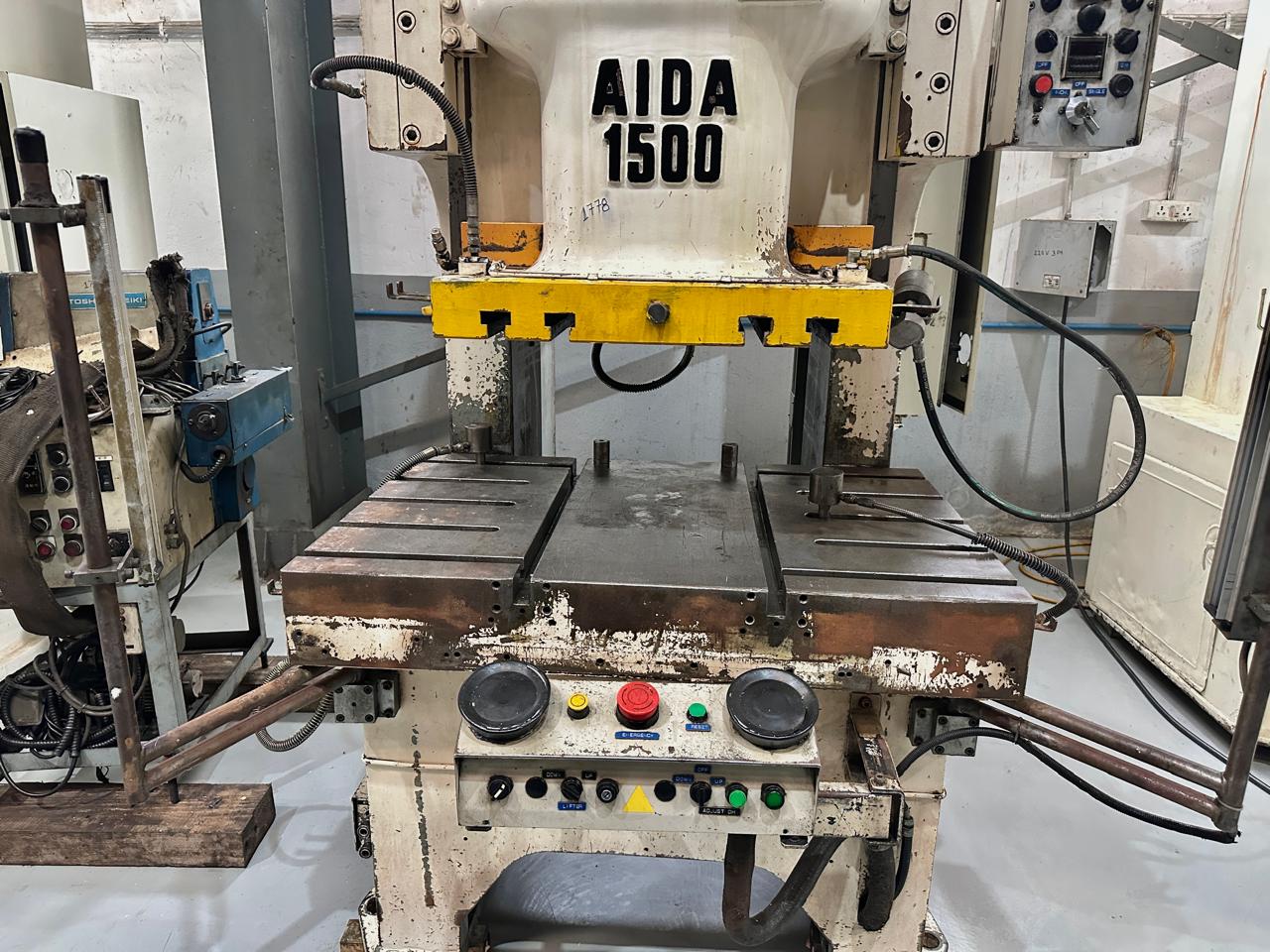

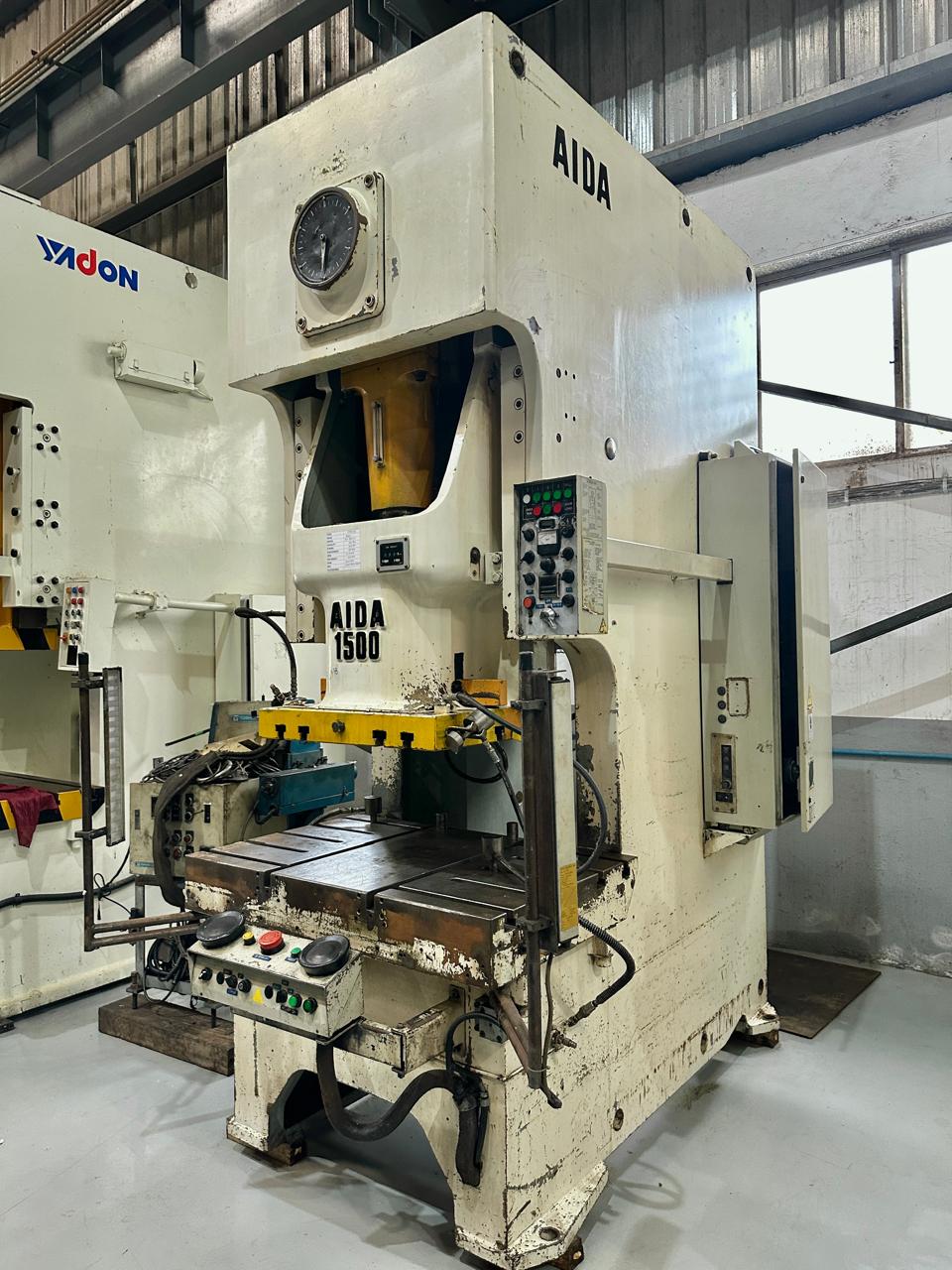

AIDA JAPAN MODEL : NC1-1500(2)
C FRAME SINGLE CRANK PRESS
AIDA JAPAN
MODEL : NC1-1500(2)
SKU # 1778
Brief Specifications/ Details
- Cap : 150Tons
- Stroke : 200mm
- Die Height : 400mm
- Adjustment : 100mm-Electrical
- SPM : 30~55
- Slide : 700 x 580mm

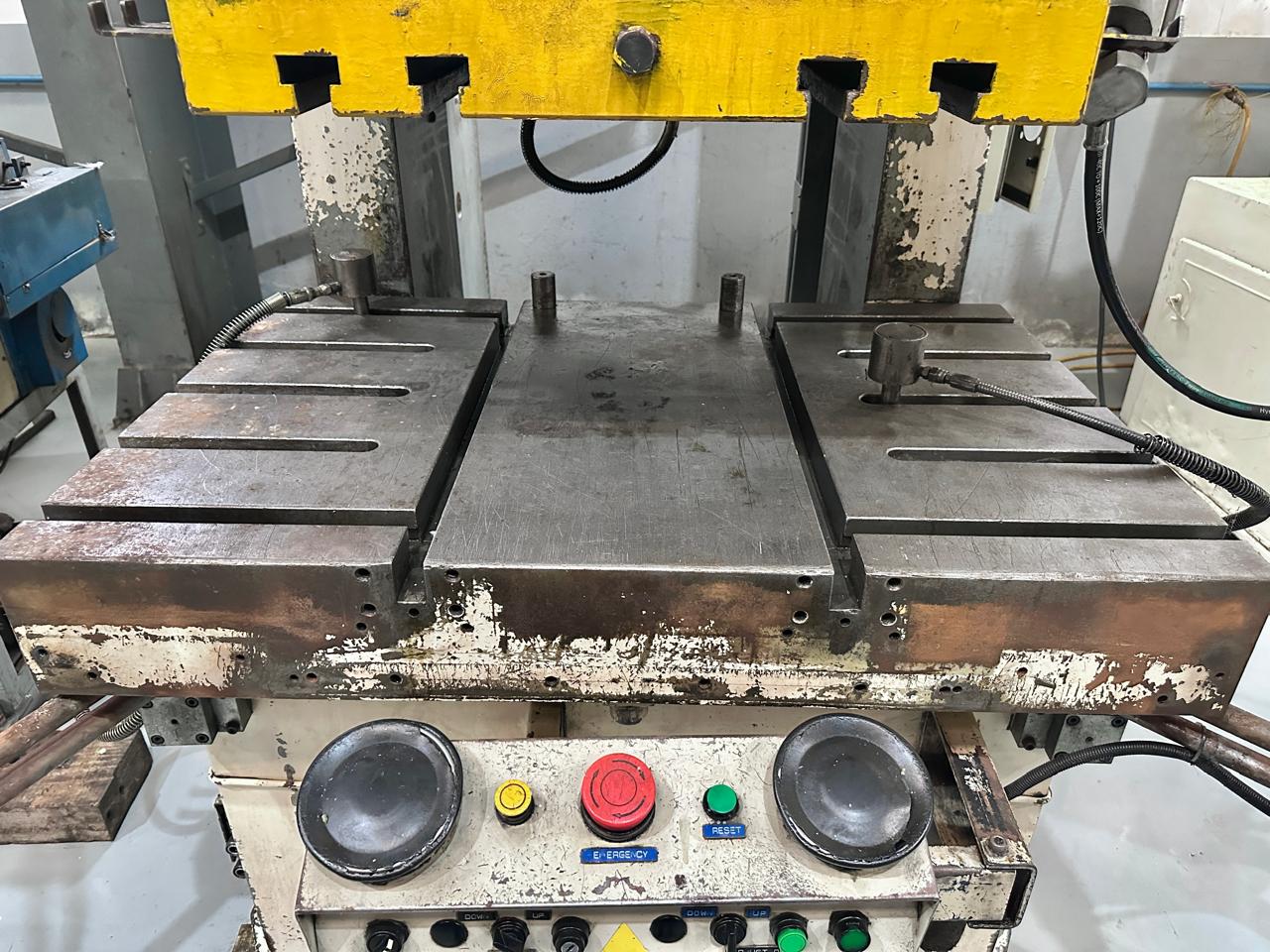

- Bolster : 1170 x 760mm
Accessories
Other Details (Approx)
- Clutch : Wet
- Main Motor : 11KW
- Power Required : 415V/14KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 7’-10”, L-R: 5’-9”, HT: 11’-0”
- Machine Weight : 14.5Tons
