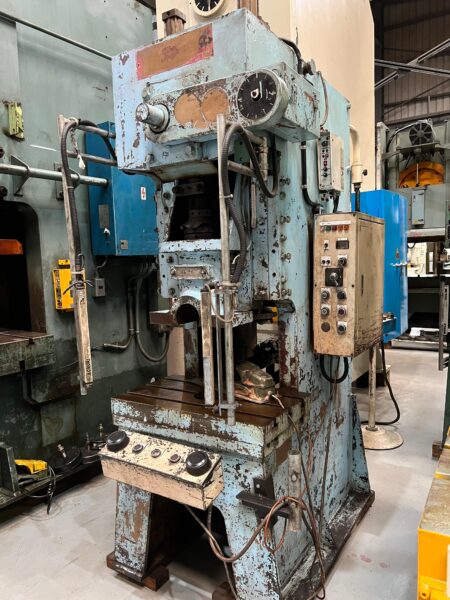

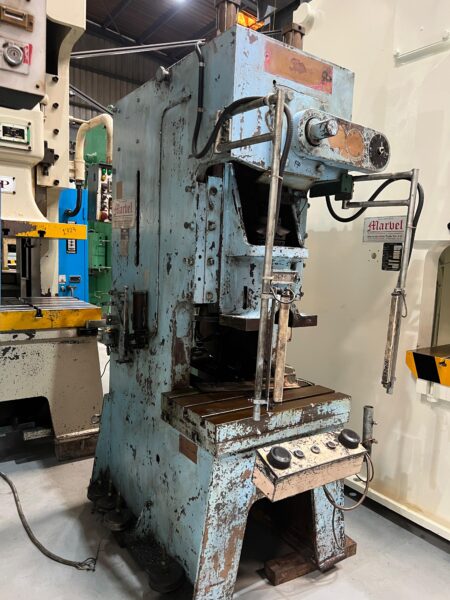

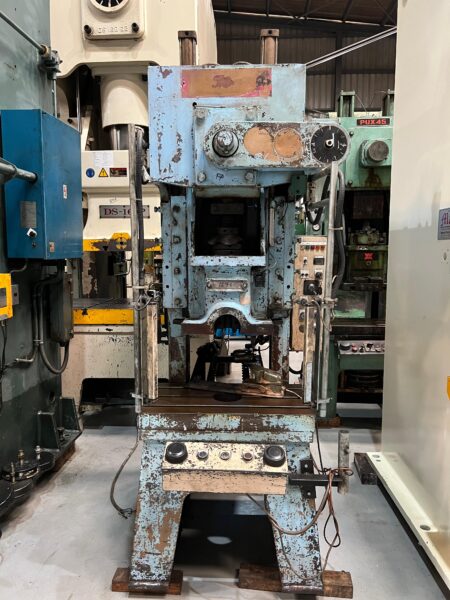

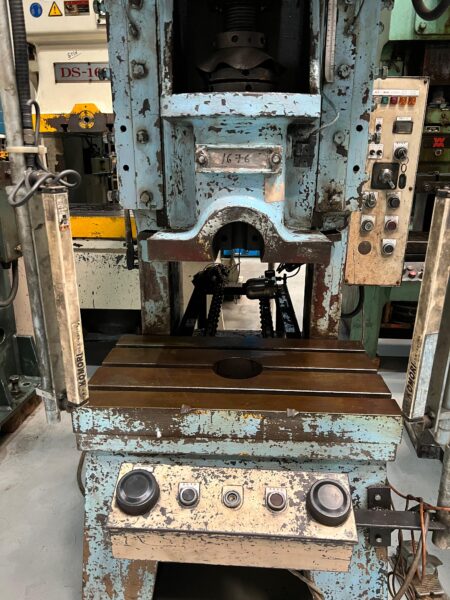

C FRAME SINGLE CRANK PRESS

WASINO JAPAN
MODEL : PUX – 40

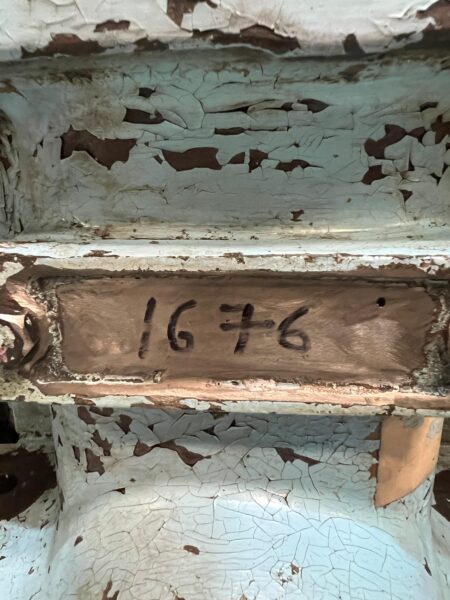

SKU # 1671

Brief Specifications/ Details

• Cap : 40Tons
• Stroke : 100mm
• Die Height : 250mm
• Adjustment : 60mm
• SPM : 80
• Slide : 385x 280mm
• Bolster : 720 x 420mm

Accessories

 Other Details (Approx)

• Clutch : Dry
• Main Motor : 3.5KW
• Power Required : 220V/4KVA Phase : 3
• Air Required : 5.5/sqcm
• Machine Size : F-B: 5’-2”, L-R: 3’-2”, HT: 11’-7”
• Machine Weight :  4Tons
