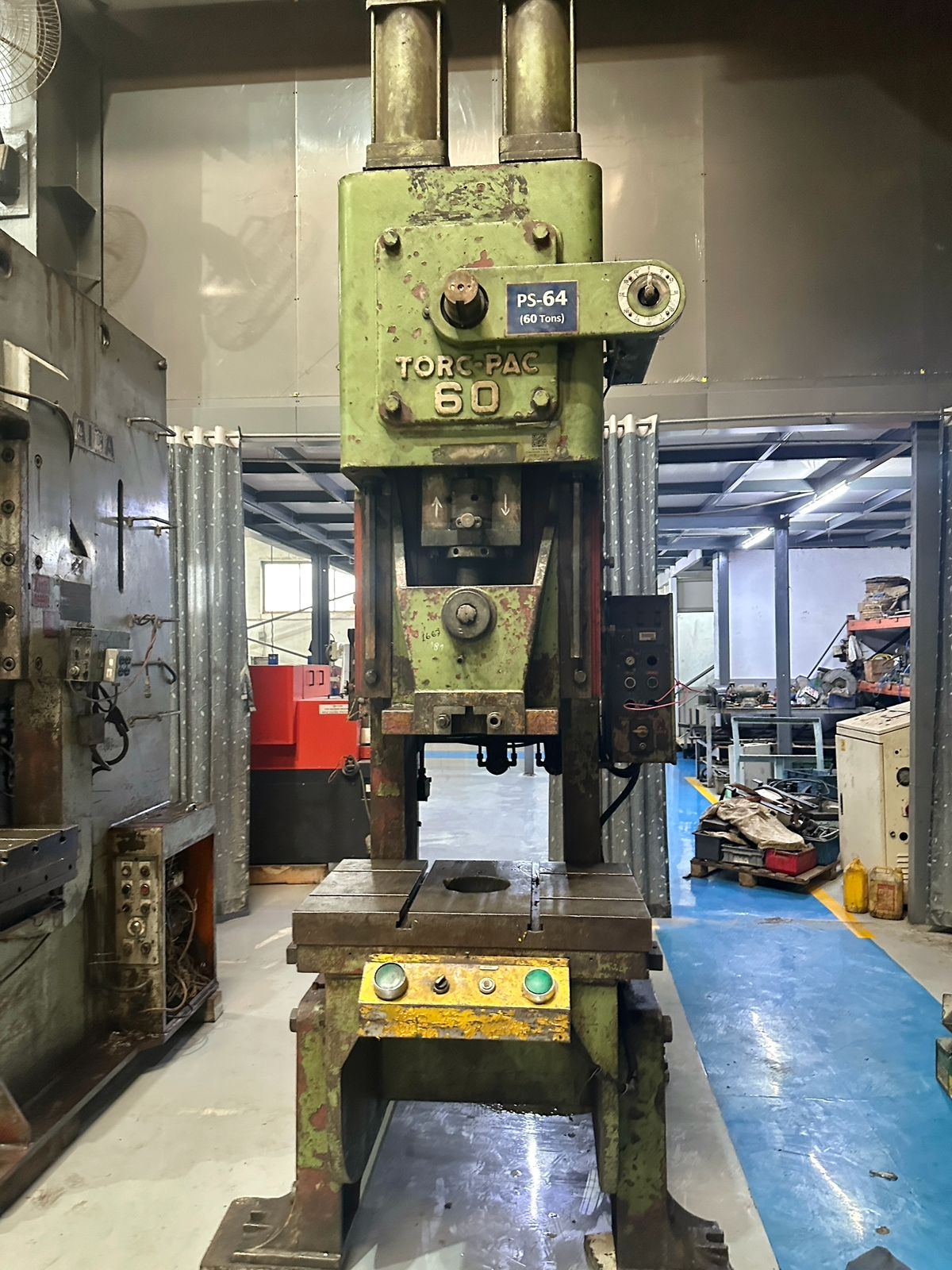

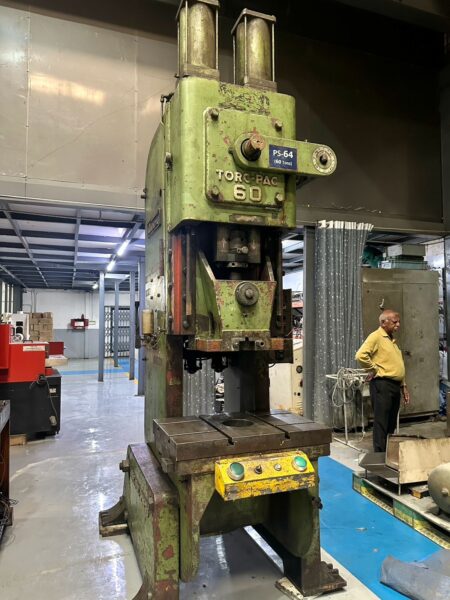

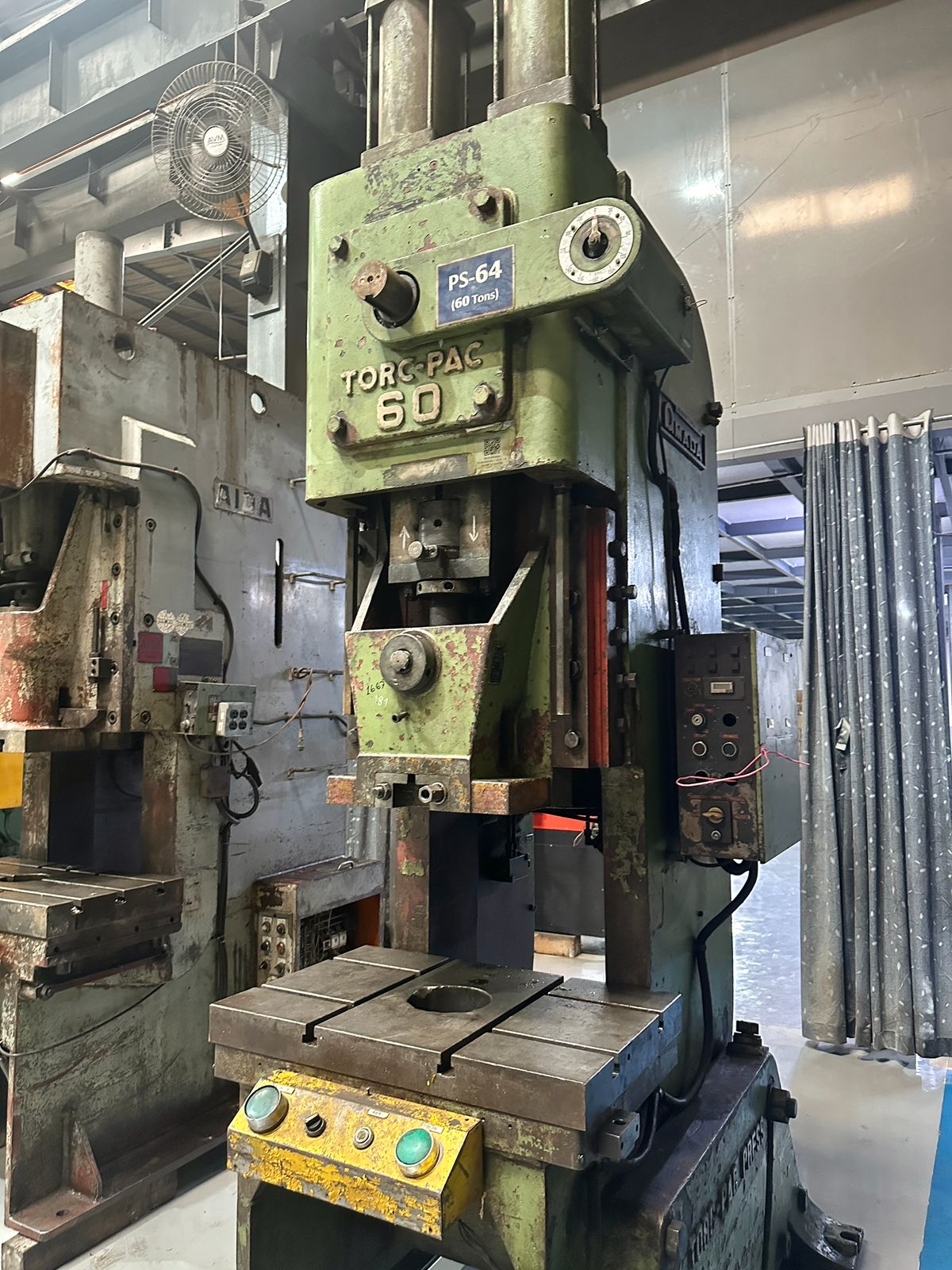

AMADA JAPAN MODEL : TP – 60
C FRAME SINGLE CRANK PRESS
AMADA JAPAN
MODEL : TP – 60
SKU # 1667
Brief Specifications/ Details
- Cap : 60Tons
- Stroke : 152mm
- Die Height : 387mm
- Adjustment : 75mm
- SPM : 60
- Slide : 430 x 300mm
- Bolster : 820 x 530mm
Accessories
Other Details (Approx)
- Clutch : Wet
- Main Motor : 4KW
- Power Required : 380V/5KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 5’-0”, L-R: 4’-0”, HT: 11’-0”
- Machine Weight : 5 Tons
