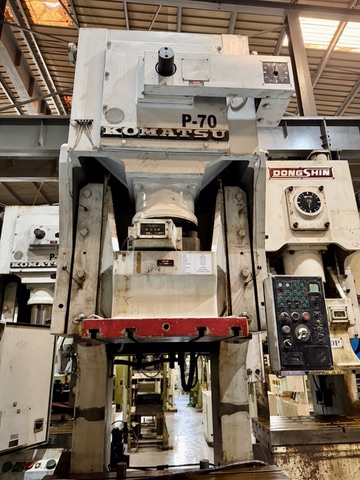

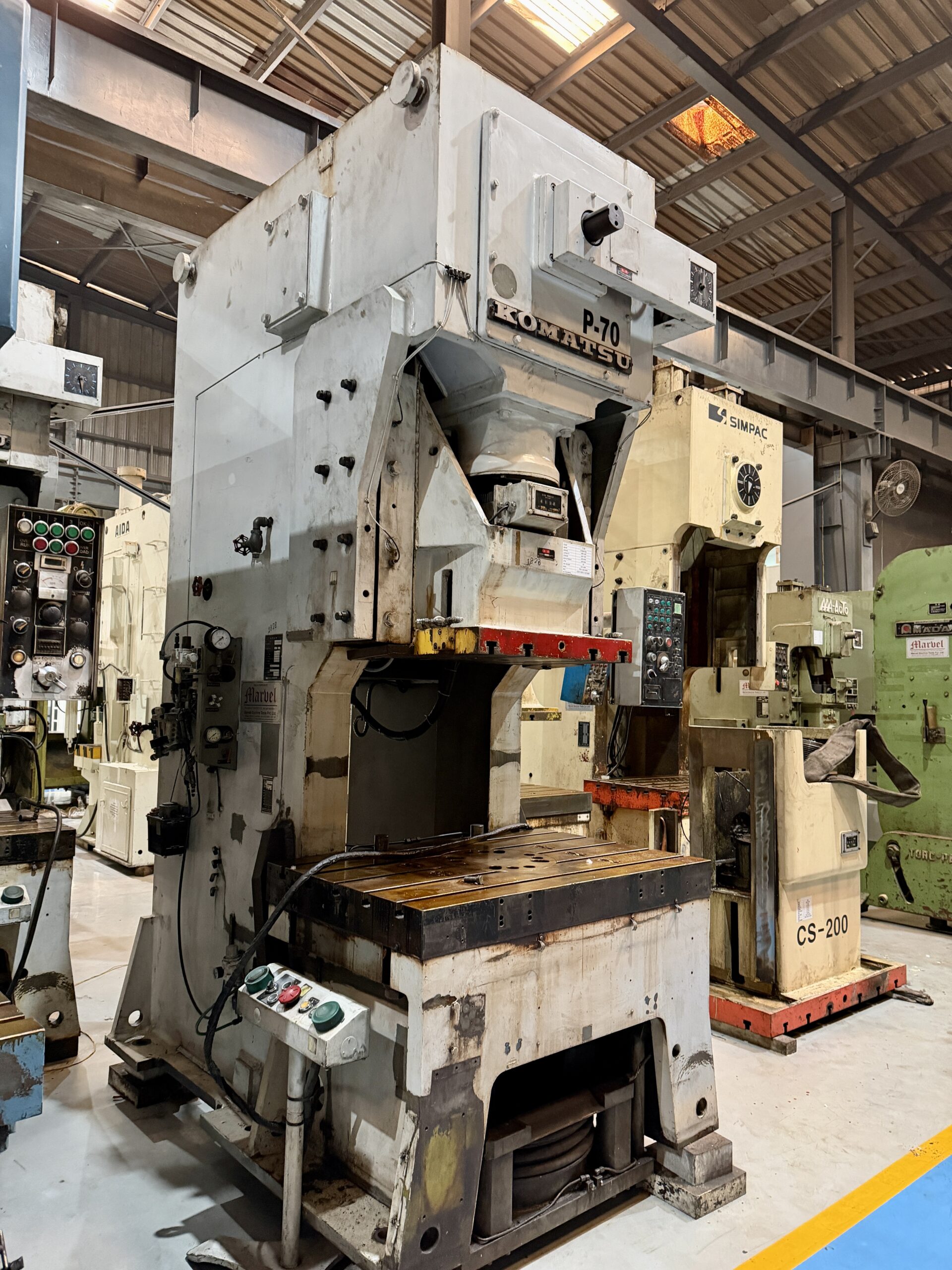

C FRAME SINGLE CRANK PRESS

KOMATSU JAPAN
MODEL : OBS-150-2

SKU # 1828

Brief Specifications/ Details

• Cap : 150Tons
• Stroke : 250mm
• Die Height : 425mm
• Adjustment : 100mm-Electrical
• SPM : 55
• Slide : 700 x 550mm

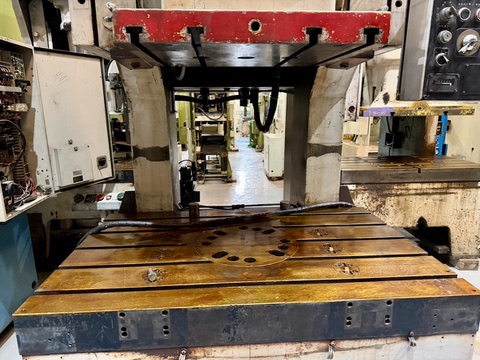

• Bolster : 1250 x 800mm

Accessories

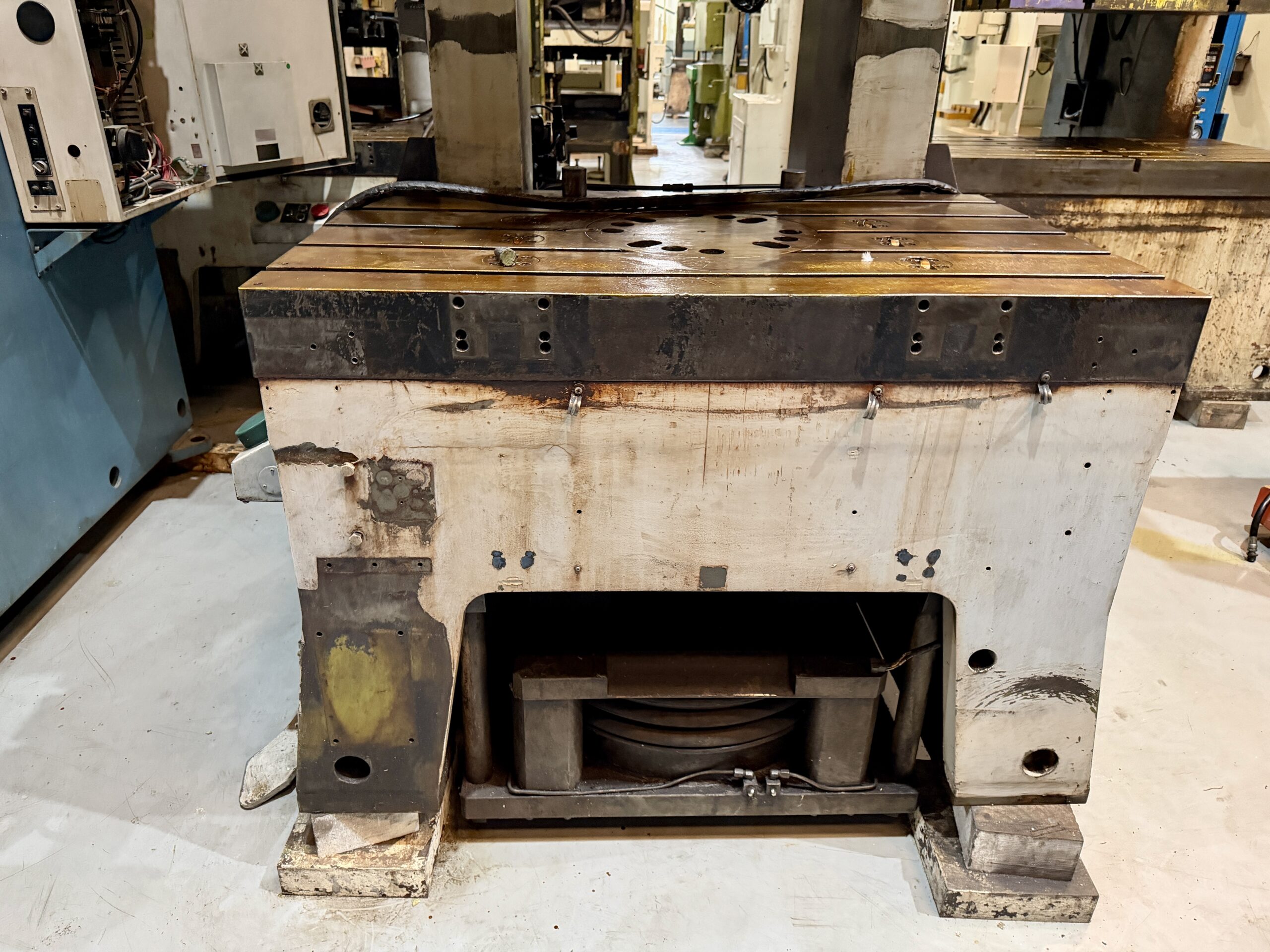

With Die Cushion

 Other Details (Approx)

• Clutch : Wet
• Main Motor : 11 KW
• Power Required : 220V/13KVA Phase : 3
• Air Required : 5.5/sqcm
• Machine Size : F-B: 7’-0”, L-R: 5’-0”, HT: 12’-0”
• Machine Weight : 15 Tons
