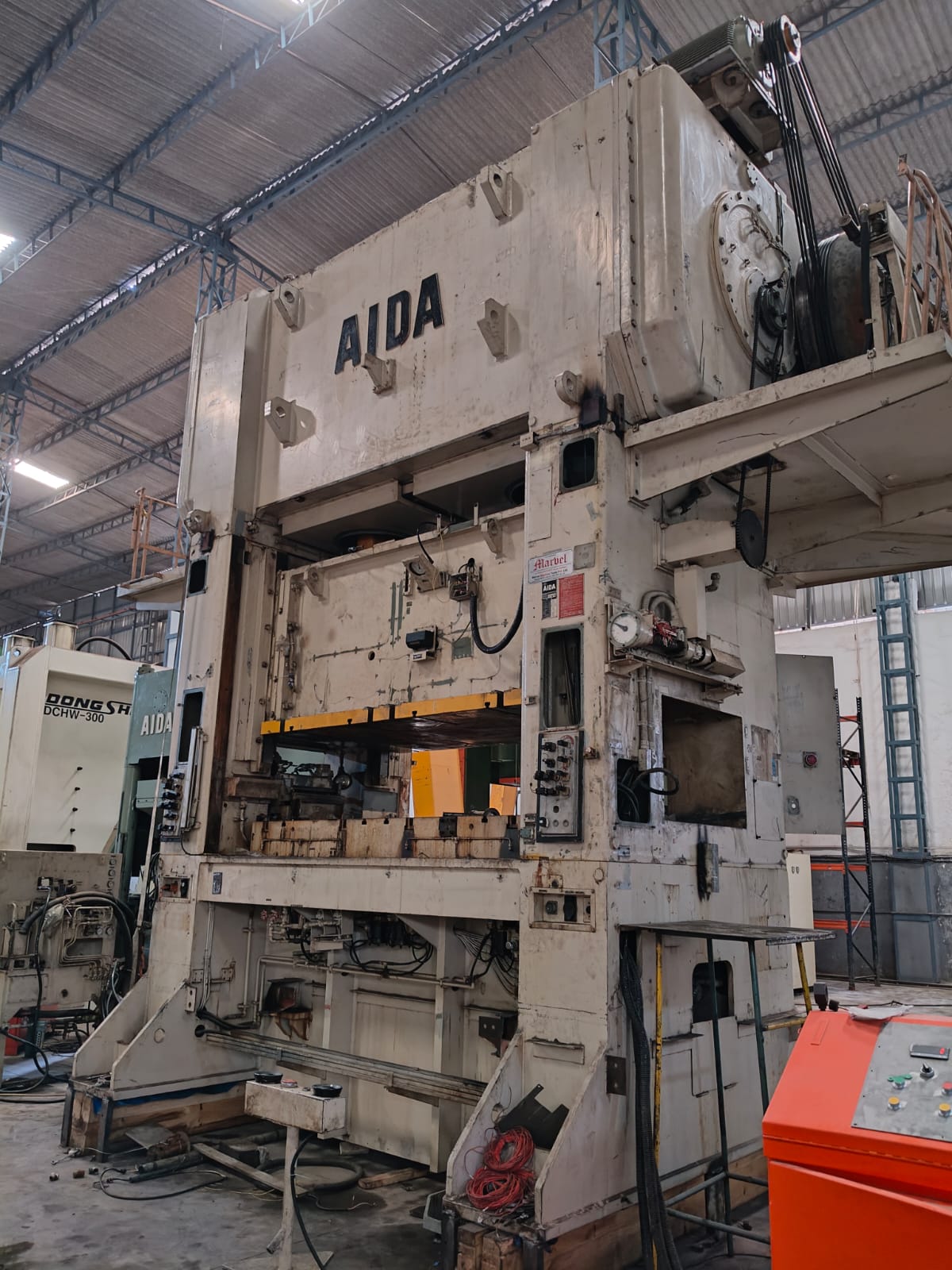

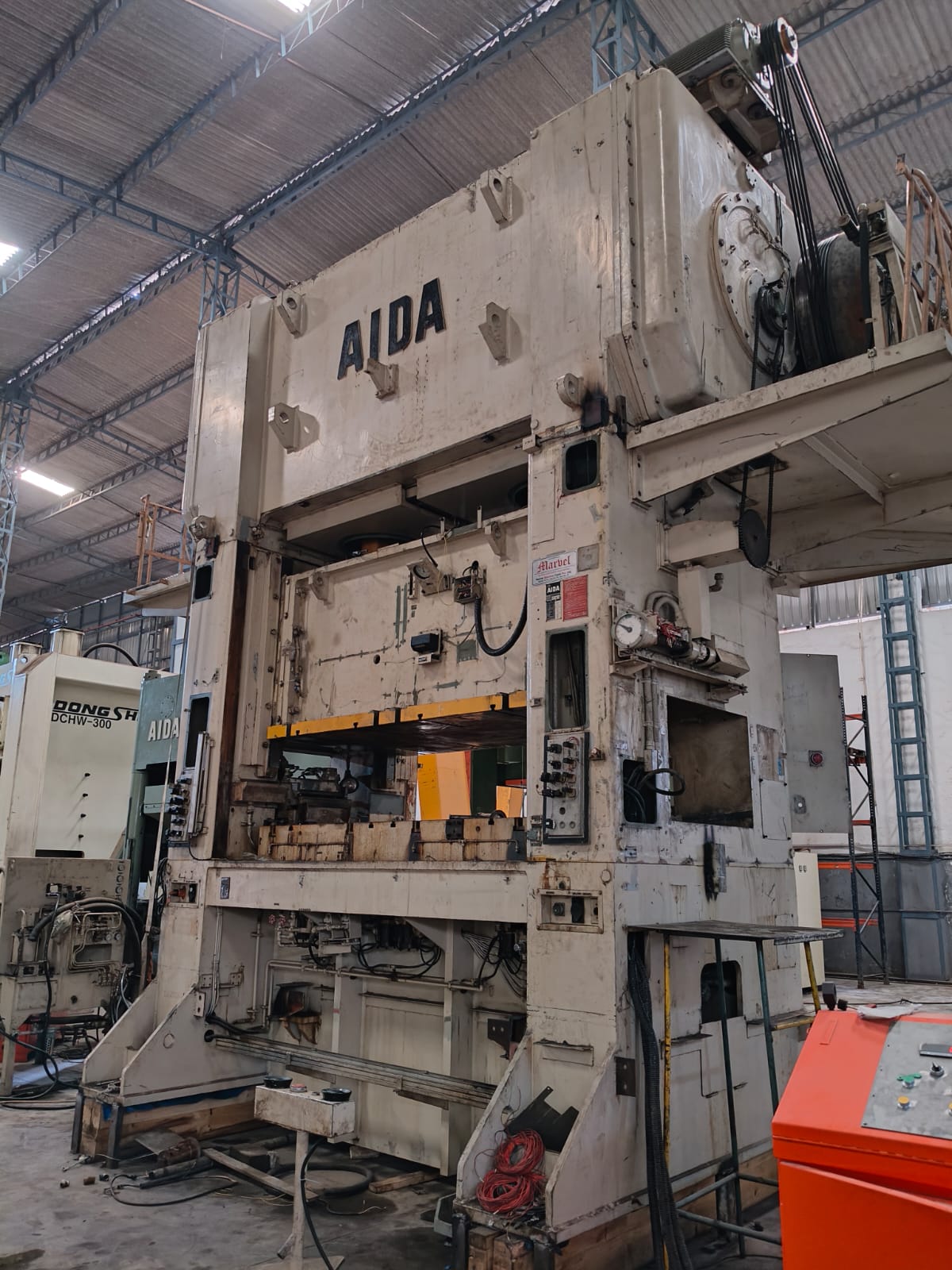

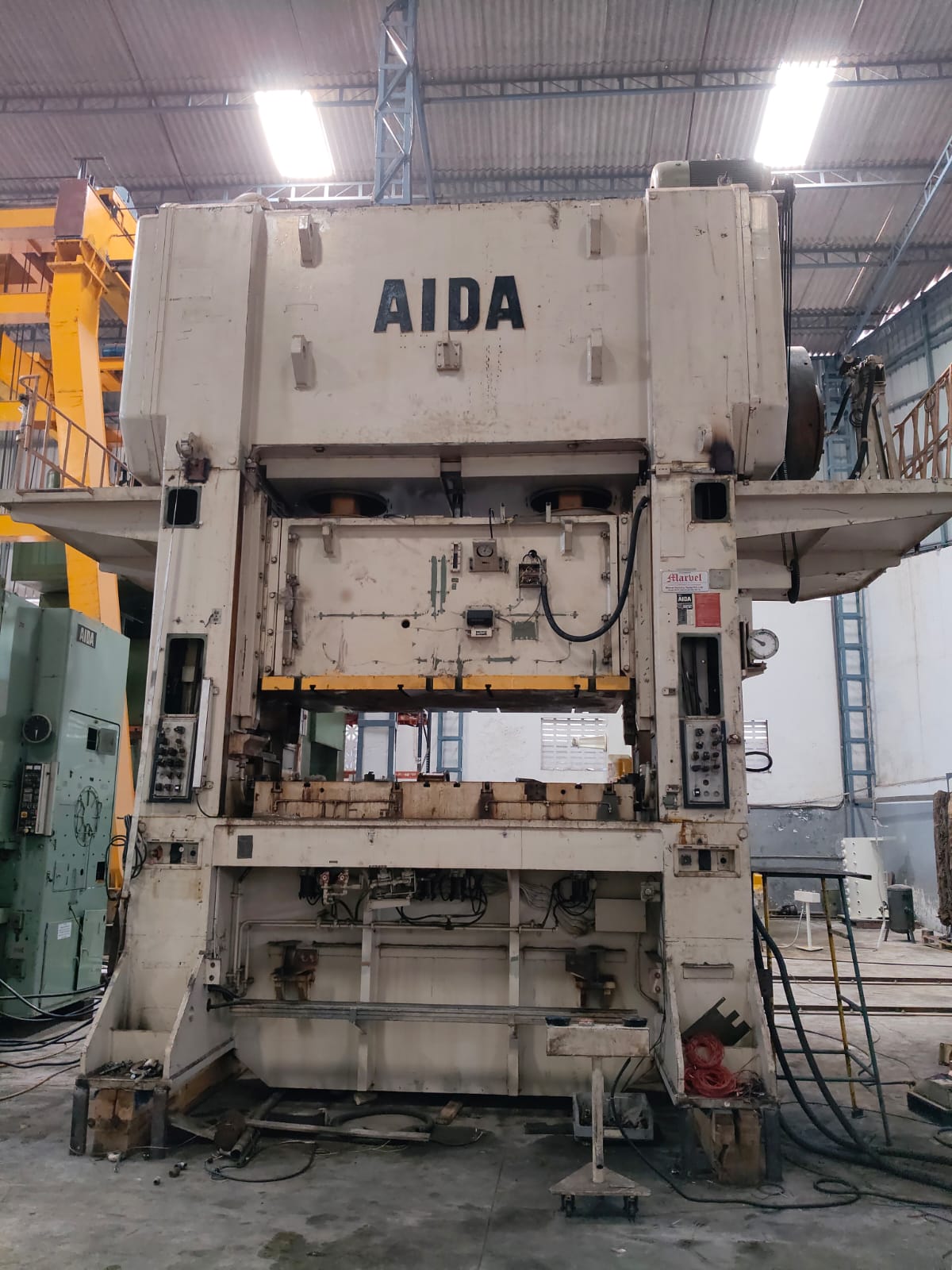

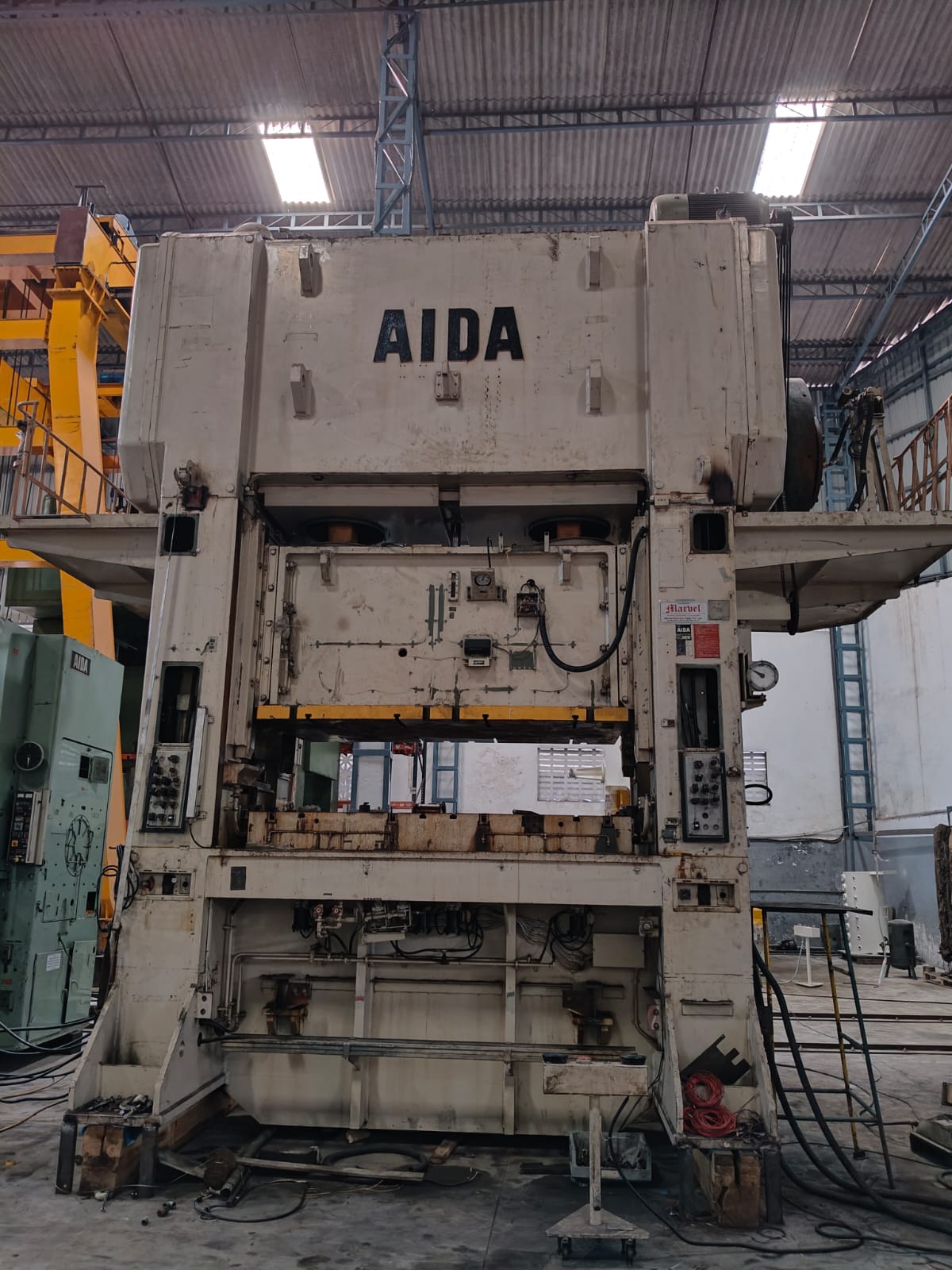

H-FRAME DOUBLE CRANK  BLANKING PRESS LINE

AIDA JAPAN

MODEL: QDA-60

SKU # 1520

Brief Specifications/ Details

• Cap: 600Tons
• Stroke : 200mm
• Die Height : 550mm
• Bed Size : 2500 x 1400mm
• Ram Size: 2500 x 1400
• Adjustment : 150mm
• With moving bolster

      + Leveler Feeder

• Form : LFS-40R
• Coil material : SPC
• Minimum coil width : 100
• Maximum coil width : 400
• Minimum plate thickness : 05
• Maximum plate thickness : 4.5
• Maximum coil diameter : 1500
• Coil inner diameter : 508
• Maximum feed length : 400
• Maximum number of feeds : 100

      Other Details (Approx)

• Power Required: V/KVA Phase:3
• Main Motor:KW
• Air Required: /sqcm
• Working Space: F-B: 0’-0”, L-R: 0-0”, HT: 0’-0”
• Packing Size: F-B: 0’-0”, L-R: 0’-0”, HT: 0’-0”
• Net Weight: Tons
