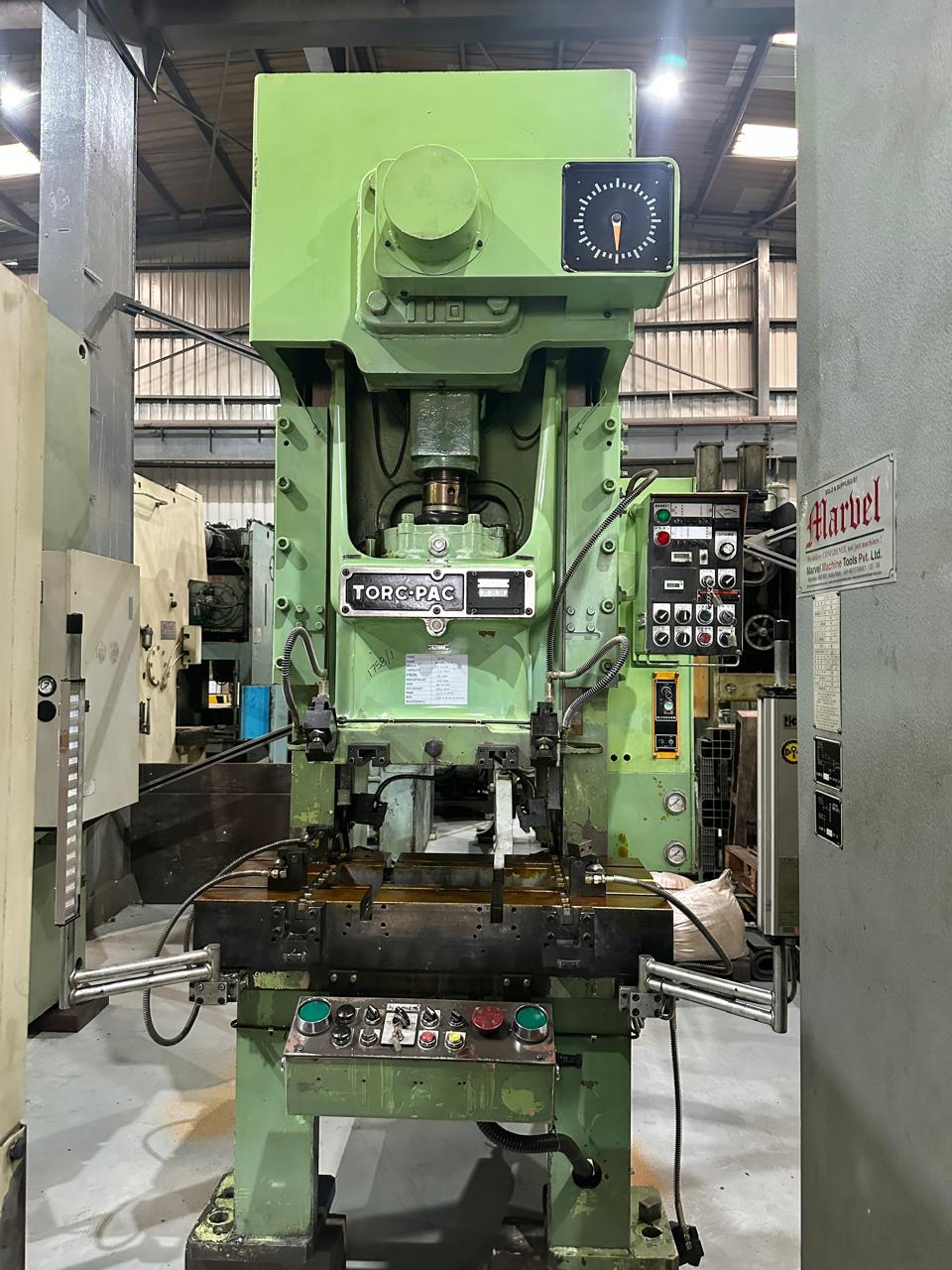

C FRAME SINGLE CRANK PRESS

AMADA JAPAN
MODEL : TP-110D

SKU # 1758/1

Brief Specifications/ Details

• Cap : 110Tons
• Stroke : 70mm
• Die Height : 340mm
• Adjustment : 100mm-Electrical
• SPM : 70~150
• Slide : 600 x 500mm
• Bolster : 1100 x 540mm

DECOILER-STRAIGHTENER-FEEDER

SKU # 1758/ 2

ORII JAPAN MODEL : LCC03KR

• THICKNESS 0.3~3.2MM
• MAX WIDTH 300MM
• MAX COIL DIA 600~1200MM
• FEED LENGTH 25~380MM
• MAX COIL WT : 1100KGS

Accessories

 Other Details (Approx)

• Clutch : Wet
• Main Motor : 7.5KW
• Power Required : 220V/10KVA Phase : 3
• Air Required : 5.5/sqcm
• Machine Size : F-B: 8’-1”, L-R: 5’-0”, HT: 10’-5”
• Machine Weight : 10Tons
